French DIAGER four-groove waterproof drill bit water-stop drill tail planting bar chemical anchor suitable for (AA10016)

French DIAGER four-groove waterproof drill bit water-stop drill tail planting bar chemical anchor suitable for (AA10016)

Regular price NT$210
Regular price Sale price NT$210
Sale Sold out
Tax included. Shipping calculated at checkout.
size

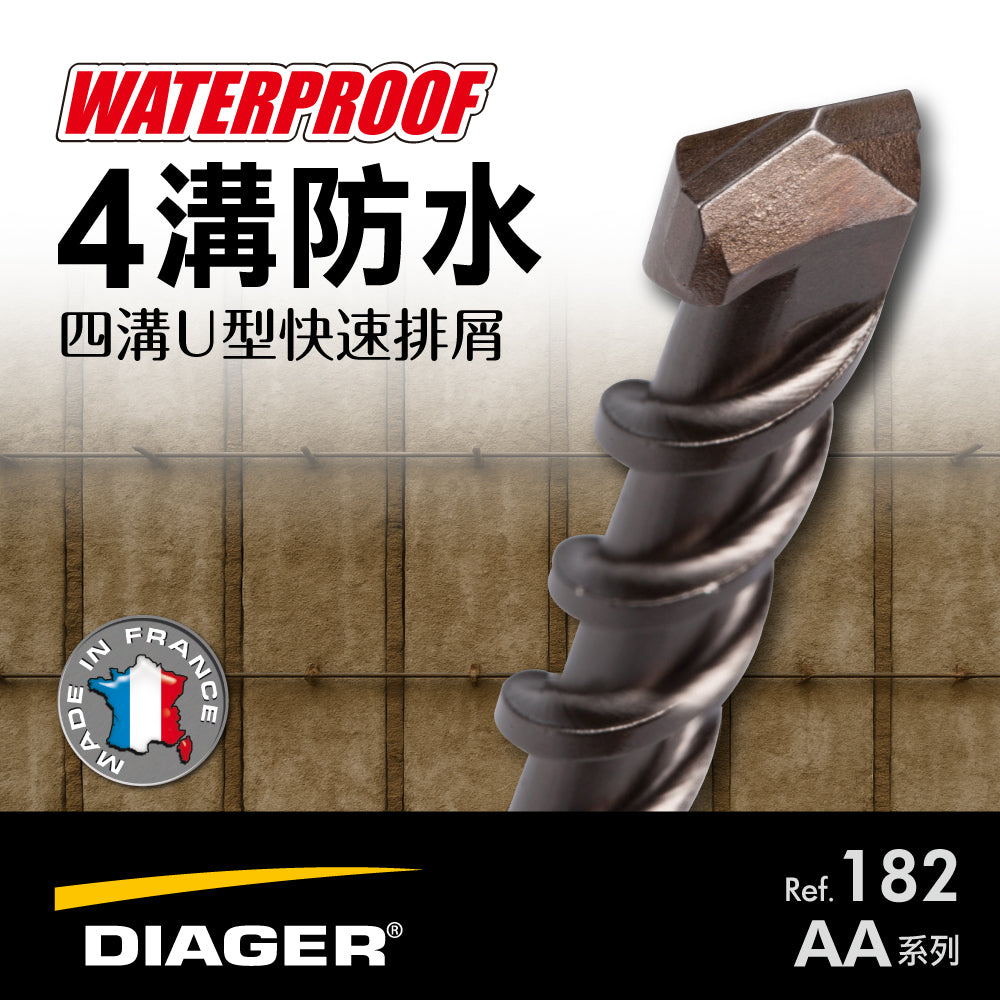

Exclusive agent ~ DIAGER special cement drill bit imported from France for waterproofing and four-groove cement drill bit for water- stopping . It is SDS PLUS cement drill tail. The upgraded U-shaped groove is suitable for substrates with high moisture content in waterproofing and water-stopping projects, such as high-humidity sand. Stone, remove chips freely . The cutter head is made of shock-resistant carbide material, which is hard and impact-resistant. When used with a force-free 4-channel hammer drill, the effect is first-class.

Product Features:

  • French DIAGER four-groove cement drill bit, super-hard tungsten alloy bit, hard material, impact resistance, low wear rate, four-groove cement drill tail, upgraded U-shaped groove, suitable for bases with high moisture content in waterproofing and water-stopping projects Material, high humidity sand and gravel, free chip removal, fast drilling speed
  • SDS-plus four-groove waterproof drill bit, suitable for use with the power-free 4-groove hammer drill
  • DIAGER four-groove waterproof drill bit is suitable for planting reinforcement and chemical anchor bolts. It is a professional drill tail for water-stop construction.
  • Diager, a drill bit originally imported from France, is the largest factory in Europe, a professional manufacturer of drill bits, and the general agent of Bailishi

Drilling function:

gypsum board ★★★★
brick ★★★★
Stone ★★★
hard rock ★★★
concrete ★★★
RC
granite

Instructions for use:

  • Before drilling a deep hole, you must pre-drill a shorter intermediate length hole of the same specification. The drill bit needs to be withdrawn every 10 seconds to allow for heat dissipation.
  • It is recommended to use a 4kg hammer drill for drilling in B50 cement concrete

Product specifications:

Product number diameter total length Effective length
AA10016 10 160 100mm
AA10021 10 210 150mm
AA10026 10 260 200mm
AA10031 10 310 250mm
AA10041 10 110 350mm
AA10061 10 610 550mm
AA10100 10 1000 940mm
AA12100 12 1000 940mm
AA13016 13 160 100mm
AA13021 13 210 150mm
AA13026 13 260 200mm
AA13031 13 310 250mm
AA13041 13 410 350mm
AA13061 13 610 550mm
AA13100 13 1000 940mm
