FLIR C5 Pocket Infrared Thermal Imager without Wifi function (BI-FR-C5)
FLIR C5 Pocket Infrared Thermal Imager without Wifi function (BI-FR-C5)
Couldn't load pickup availability

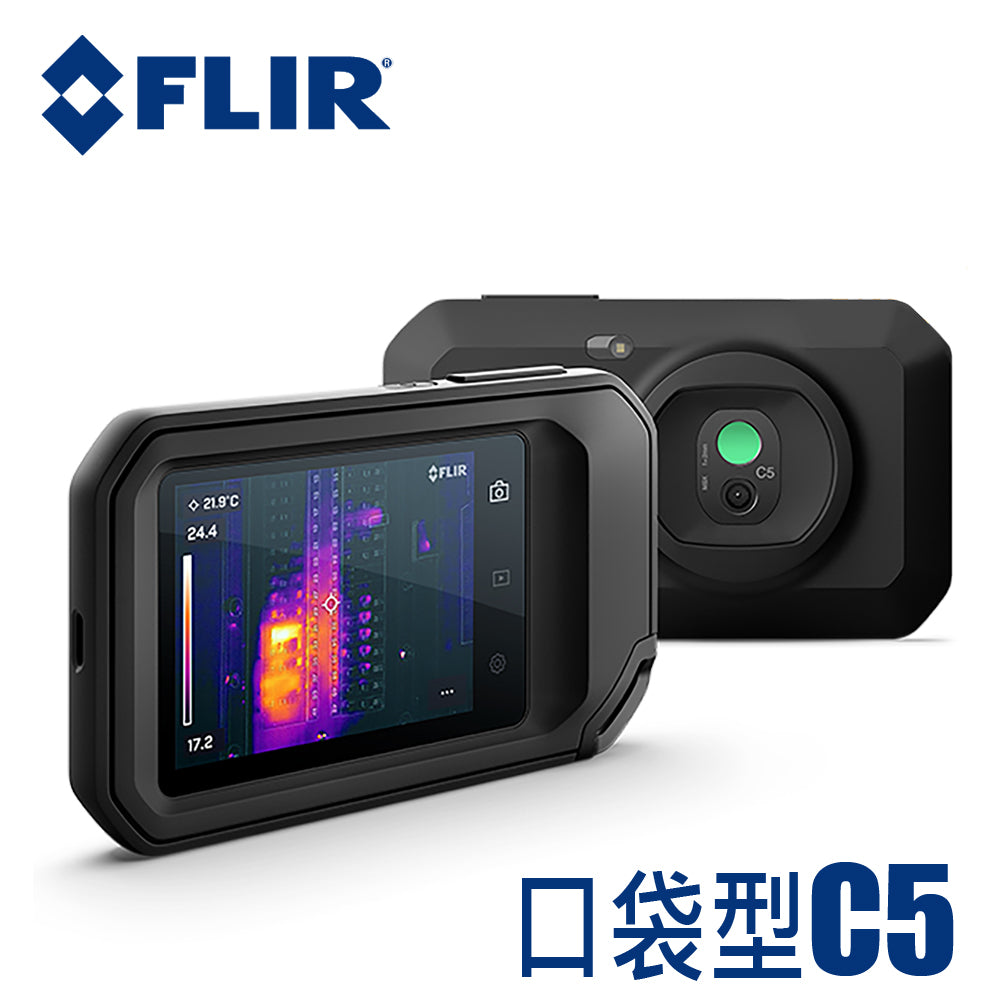

The FLIR C5 Pocket Thermal Camera is the tool of choice for building inspections, facility maintenance, HVAC/R, electrical repairs and other troubleshooting applications. Find problems faster with a 160x120 (19,200 pixel) thermal imager and a 5-megapixel visible light camera.
MSX® Multispectral Dynamic Imaging instantly identifies the location of temperature issues and easily identifies hidden problems.
The 3.5-inch touch screen is easy to use, allowing you to quickly check and record maintenance status. The P54 case provides a high level of dustproof and waterproof protection and is designed to withstand a 2M drop. It has a built-in LED flashlight for viewing dark and hard-to-reach areas.
Pocket design, easy to carry. With the FLIR C5, you can find thermal melt points, air leaks, plumbing issues and more at any time.
Product specifications:
| Overview | |
| Infrared sensor | 160 × 120 (19,200 pixels) |
| Thermal Sensitivity/NETD | <70mK |
| Viewing angle (FOV) | 54° × 42° |
| minimum focal length |
Thermal image: 0.1M
MSX®: 0.3M
|
| Image frequency | 8.7 Hz |
| focus | no focus |
| Wavelength range | 8–14 μm |
| screen size | 3.5 inches |
| visible light camera | 500 million pixels |
| digital camera focus | fixed |
| Image display | |
| Image adjustment |
Automatic levels and spans
Manual levels and spans
One-touch level and span
|
| Image mode |
Infrared image
Visible light image
MSX (visual details imprinted on thermal image)
Picture-in-picture (infrared area on visual image)
|
| Gallery | Thumbnails and custom folder structure |
| color mode |
Iron iron
Gray gray
Rainbow color
Arctic Arctic
lava lava
Rainbow HC Color HC
|
| screen rotation | support |
| touch screen | capacitive touch |
| Measurement and Analysis | |
| Temperature measurement range | -20~400°C (-4 ~ 752°F) |
| Accuracy |
At ambient temperature 15 ~ 35°C (59 ~ 95°F) and object temperature 0°C (32°F) or above
0 ~ 100°C (32 ~ 212°F): ±3°C (±5.5°F)
100 ~ 400°C (212 ~ 752°F): ±3%
|
| Measurement correction |
Emissivity matte/semi-matte/semi-gloss + custom value
Reflected surface temperature
atmospheric compensation
|
| Image storage and transfer wheels | |
| storage media | Internal storage memory |
| Picture storage capacity | >5000 pictures |
| Image file format | StandardJPEG |
| Communication and connection | |
| USB | USB 2.0 Type C connector |
| other | |
| Battery Type | Rechargeable built-in lithium-ion battery |
| Battery run time | 4 hours |
| Charging system | USB-C (1 A) |
| Charging time | 2 hours |
| External power operation | 5 V, USB-C |
| range of working temperature | -10 ~ 50°C (14 ~ 122°F) |
| Storage temperature range | -40 ~ 70°C (-40 ~ 158°F) |
| encapsulation | Camera housing and lens: IP54 (IEC 60529) |
| drop test | Designed for 2 meters (6.6 feet) |
| Weight (including battery) | 0.19kg (0.42lb) |
| Dimensions (length × width × height) | 138 × 84 × 24mm |
Product warranty: 1 year warranty
Note: Imported from Taiwan, the current version is a non-Wi-fi version.
※Please note:
Thermal imaging cameras can only see the surface of objects and cannot see through walls .
Thermal imaging camera converts the thermal radiation of an object into a light signal for imaging. By observing the temperature difference on the surface of the object, it is displayed on the screen , providing signs invisible to the naked eye for the operator to make judgments. If the temperature difference is not too small, it cannot be clearly displayed. .
Except for thermal imaging cameras controlled by the military, ordinary thermal imaging cameras cannot penetrate walls or objects.
