Origin : Switzerland

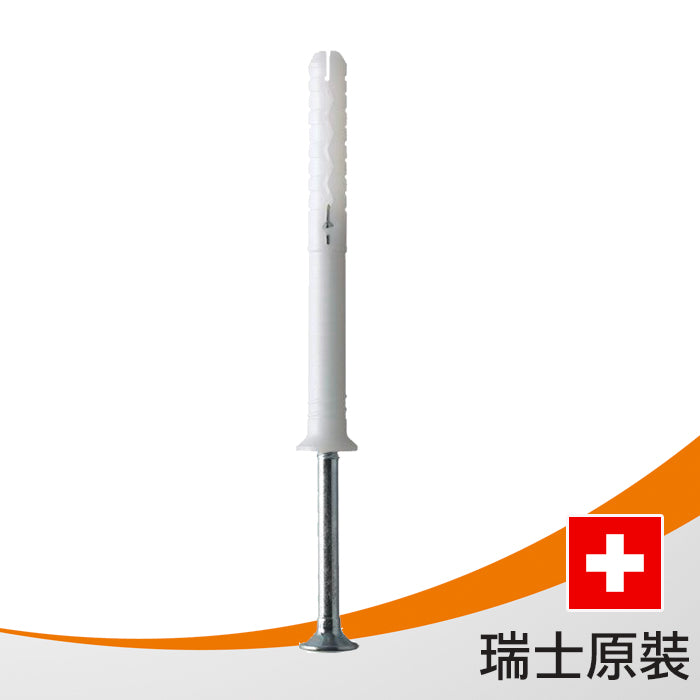

Swiss Mungo MNA percussion nylon quick nail nylon nail resistant dragon nail Lige nail nylon quick percussion nail (HM1122606S)
Swiss Mungo MNA percussion nylon quick nail nylon nail resistant dragon nail Lige nail nylon quick percussion nail (HM1122606S)
Regular price
NT$403
Regular price
Sale price
NT$403
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Originally imported from Switzerland, Mungo brand MNA percussive nylon quick nails, also known as nylon nails, nylon nails, grid nails or vertical grid nails, are hardware tools that can fix objects on the wall or ceiling.
Utilizing the elasticity of nylon material, it can expand in the hole after knocking, forming friction, so that the object and the wall are closely combined, replacing the trouble of buying plastic plugs and nails. The combined nylon quick knocking nails eliminate the need for Save you the trouble and make your construction faster.
feature of product:
- Swiss percussion nylon quick nails (percussion nylon quick nails, percussion nylon plastic screws, percussion nylon screws, percussion nylon screw screws, percussion Anka anchors)
- Easy installation of percussion nylon quick nails
- Percussion nylon plastic geckos are suitable for penetrating fixation
- High knock load force increases bolt sleeve gripping force
- Angled-headed percussion nylon gecko screws
product material:
High quality polyamide (Polyamide PA6)
Screws: galvanized
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, bricks, and natural stone
Product Usage:
wooden structure, skirting boards, frame
Technical Information:
Safety factor: 5 / 1kN=100kg
| Allowable load (kN) | Concrete C20/25 | Bricks | sandstone |
|---|---|---|---|
| MNA 5 | 0.25 | 0.2 | 0.15 |
| MNA 6 | 0.3 | 0.25 | 0.2 |
| MNA 8 | 0.4 | 0.3 | 0.25 |
| MNA 10 | 0.5 | 0.4 | 0.3 |
Product specifications:
| Product number | Specification | Nail set hole diameter (mm) |
length (mm) |
Neck diameter (mm) |
available length (mm) |
Nail set pattern | Screw specifications | pc/box |
|---|---|---|---|---|---|---|---|---|
| HM1122606S | MNA6x60s | 6 | 60 | 9 | 30 | Oblique mouth type | PZ2 | 100 |
| HM1122808S | MNA8x80s | 8 | 80 | 12 | 40 | Oblique mouth type | PZ3 | 100 |
| HM1122810S | MNA8x100s | 8 | 10 | 12 | 60 | Oblique mouth type | PZ3 | 100 |
| HM11229101S | MNA10x100s | 10 | 100 | 13 | 50 | Oblique mouth type | PZ3 | 50 |
| HM112350324G-300 | MNA-G 5x30 | 5 | 30 | 11 | 25 | Flat mouth type | PZ2 | 300 |
| HM1122505Z | MNA5x50z | 5 | 50 | 8 | 25 | Flat mouth type | PZ2 | 200 |
| HM11228061Z | MNA8x60z | 8 | 60 | 15 | 20 | Flat mouth type | PZ3 | 100 |
| HM1122810Z | MNA8x100z | 8 | 10 | 15 | 60 | Flat mouth type | PZ3 | 100 |
| HM1122812Z | MNA8x120z | 8 | 120 | 15 | 80 | Flat mouth type | PZ3 | 100 |
