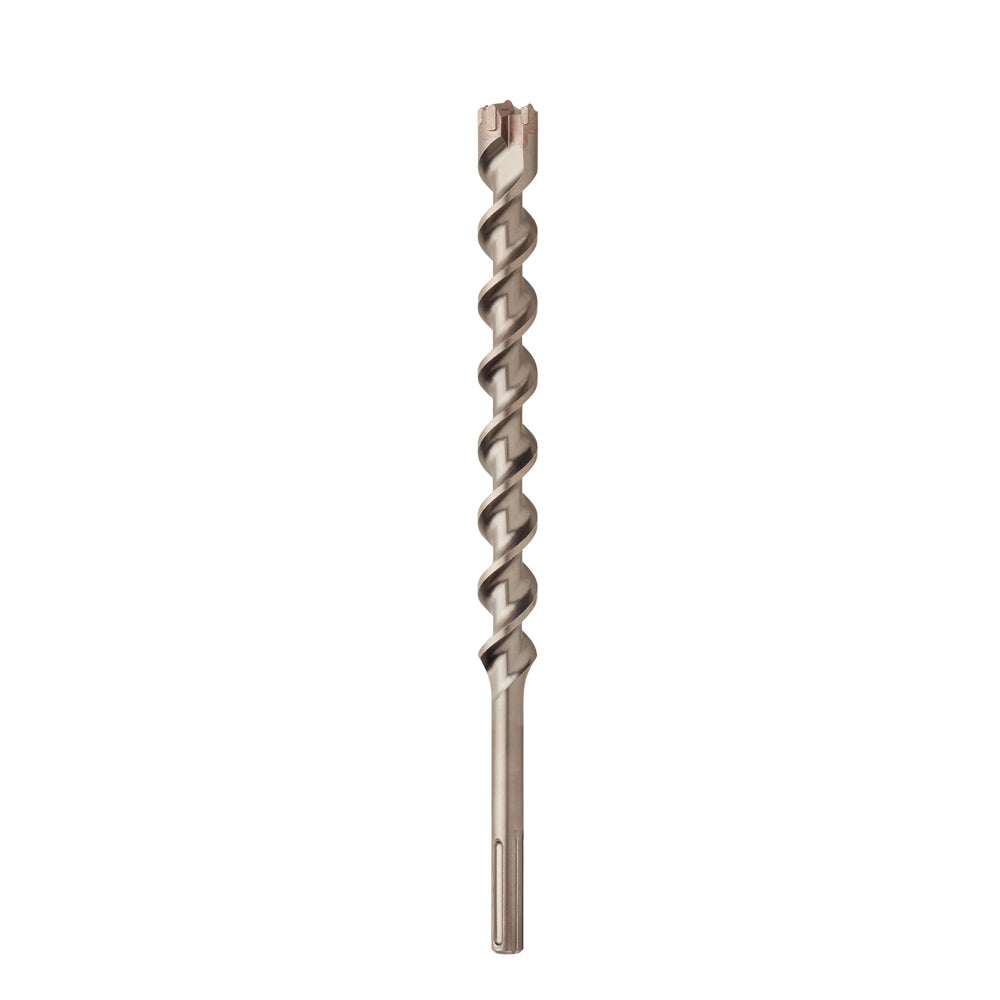

French DIAGER five grooves and six edges cement drill tail bit (AH20034)

French DIAGER five grooves and six edges cement drill tail bit (AH20034)

Regular price NT$1,430
Regular price Sale price NT$1,430
Sale Sold out
Taxes included. Shipping calculated at checkout.
size

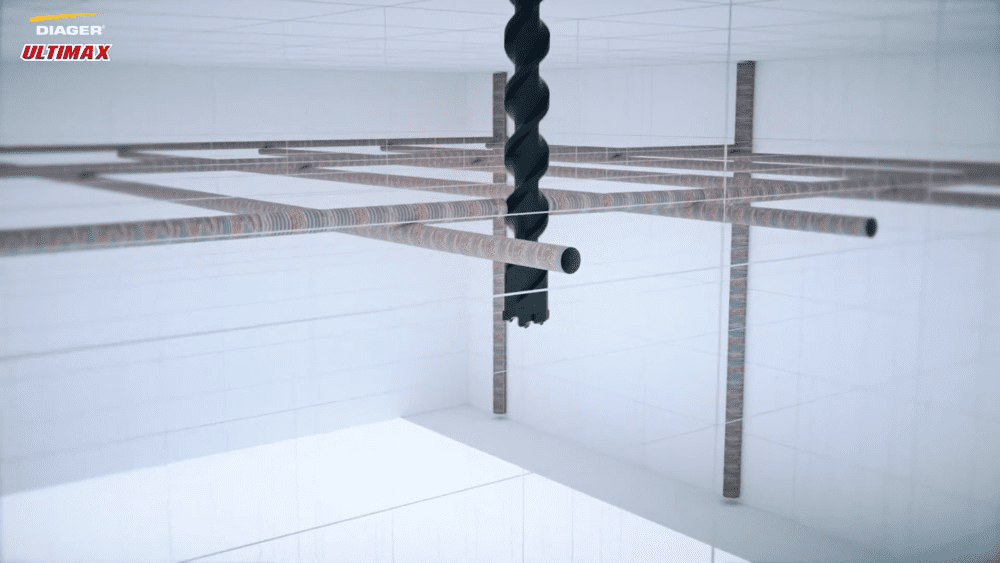

The DIAGER five-groove six-blade cement drill tail drill bit, originally imported from France, is suitable for five-groove force-free hammer drilling. It is a five-groove steel bar drill bit that can pass through steel bars. The five-groove hammer drill bit adopts super-hard tungsten steel cutter head, which is hard and impact-resistant. The alloy cutter head has a positioning convex point design, which can automatically position , and the shoveling effect is easier to crush concrete. The hole diameter is accurate and the position is not offset. 6 main cutting edges maintain simultaneous cutting in multiple directions, increase drilling speed, and ensure stable and balanced drilling force through automatic positioning.

Product Features:

  • The French DIAGER five-groove six-blade cement drill tail drill bit is a drill bit that can drill through steel bars . It uses a super-hard alloy cutter head, which is hard in material, impact-resistant, has a low wear rate and a long service life.
  • New grooves strengthen the axial drilling force and enhance the earthquake resistance
  • 3 alloy blades, 6 main cutting edges, automatic center positioning, accurate positioning, easier to crush concrete
  • The alloy cutter head has a positioning bump design, automatic positioning, circular drilling, and position does not shift
  • Special heat treatment to absorb vibration, absorb shock waves and reduce recoil
  • Maintain multi-directional cutting at the same time, increase drilling speed, and ensure stable and balanced drilling force through automatic positioning
  • Suitable for use with the zero-effort five-groove hammer drill
  • DIAGER is the largest drill manufacturer in Europe, a professional drill manufacturer, and the only distributor of drill bits imported from France.

Product Features:

efficiency ★★★
speed ★★★
life ★★★
Drilling power ★★★★

Suitable for drilling materials:

Gypsum Board ★★★★
brick ★★★★
Stone ★★★★
Hard Rock ★★★★
Concrete ★★★★
Reinforced concrete ★★★
granite
ceramics
Glass

Instructions for use:

  • Before drilling a deep hole, you must pre-drill a shorter intermediate length hole of the same specification to reduce the pressure on the drill bit.
  • When drilling, it is necessary to maintain a stable pressure and remove the drill bit from the hole frequently to remove debris. Use a slow speed to drill harder materials to extend the life of the drill bit.
  • Different drilling speeds are used depending on the model of the electric drill. Generally speaking, regardless of the drill bit specifications, the recommended drill speed is 300-400 revolutions per minute.
  • Do not use too much force on the hammer drill when using it. Just use normal force to avoid hand fatigue.

French Diager five groove six blade cement drill tail drill bit
French Diager five groove six blade cement drill tail drill bit
French Diager five groove six blade cement drill tail drill bit

Specifications:

Product Number diameter Total length Effective length
AH14034 14 340 200
AH16034 16 340 200
AH16054 16 540 400
AH16069 16 690 550
AH16092 16 920 780
AH18034 18 340 200
AH18054 18 540 400
AH18069 18 920 780
AH18092 20 920 780
AH19034 19 340 200
AH20034 20 340 200
AH20054 20 540 400
AH20069 20 690 550
AH20092 20 920 780
AH20130 20 1300 1160
AH20150 20 1500 1360
AH22034 twenty two 340 200
AH22054 twenty two 540 400
AH22069 twenty two 690 550
AH22092 twenty two 920 780
AH22130 twenty two 1300 1160
AH24034 twenty four 340 200
AH24054 twenty four 540 400
AH24069 twenty four 690 550
AH24092 twenty four 920 780
AH24150 twenty four 1500 1360
AH25034 25 340 200
AH25054 25 540 400
AH25069 25 690 550
AH25092 25 920 780
AH25130 25 1300 1160
AH25150 25 1500 1360
AH26034 26 340 200
AH26054 26 540 400
AH26069 26 690 550
AH26092 26 920 780
AH28034 28 340 200
AH28054 28 540 400
AH28069 28 690 550
AH28092 28 920 780
AH28130 28 1300 1160
AH28150 28 1500 1360
AH30034 30 340 200
AH30054 30 540 400
AH30069 30 690 550
AH30092 30 920 780
AH32034 32 340 200
AH32054 32 540 400
AH32069 32 690 550
AH32092 32 920 780
AH32130 32 1300 1160
AH32150 32 1500 1360
AH35034 35 340 200
AH35054 35 540 400
AH35069 35 690 550
AH35092 35 920 780
AH35130 35 1300 1160
AH36034 36 340 200
AH36054 36 540 400
AH36069 36 690 550
AH38034 38 340 200
AH38054 38 540 400
AH38069 38 690 550
AH40054 40 540 400
AH40069 40 690 550
AH40092 40 920 780
AH40150 40 1500 1360
AH42034 42 340 200
AH42054 42 540 400
AH42069 42 690 550
AH42092 42 920 780
AH45034 45 340 200
AH45054 45 540 400
AH45069 45 690 550
AH45092 45 920 780
AH45150 45 1500 1360

Unit: mm
