| Product number | Specification | Drilling diameter (mm) |
Drilling depth (mm) |
Applicable screws (mm) |
pc/box |
|---|---|---|---|---|---|
| HP1005025 | 5 x 25 | 5 | 30 | 2.6-4 | 200 |
| HP1006030 | 6 x 30 | 6 | 35 | 3.5-5 | 200 |
| HP1008040 | 8 x 40 | 8 | 50 | 4.5-6 | 100 |
| HP1010050 | 10 x 50 | 10 | 60 | 6.0-8 | 100 |
| HP1012060 | 12 x 60 | 12 | 70 | 8.0-10 | 100 |
| HP1014075 | 14 x 75 | 14 | 80 | 10.0-12 | 50 |
| Product number | Specification | Drilling diameter (mm) |
Drilling depth (mm) |
Applicable screws (mm) |
pc/box |
|---|---|---|---|---|---|
| HP1005025K | 5 x 25 | 5 | 30 | 2.6-4 | 200 |
| HP1006030K | 6 x 30 | 6 | 35 | 3.5-5 | 200 |
| HP1010050K | 10 x 50 | 10 | 60 | 6.0-8 | 100 |
Originally imported from Switzerland, Mungo brand MNL series long-sleeved nylon nail covers and nylon bolt covers are plastic anchor bolts, also known as nylon anchor bolts, plastic plugs, plastic geckos, nylon anchor bolts, and nylon wall bolts.
feature of product:
product material:
High quality polyamide (Polyamide PA6)
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, bricks, limestone bricks, natural stone, and gypsum board
Product Usage:
Frame fixed, suitable for knock-on screws
| Concrete C20/25 allowable load (kN) | Allowable load of solid bricks (kN) | Allowable load of lightweight concrete (kN) | |
|---|---|---|---|
| MNL6 | 0.6 | 0.4 | 0.06 |
| MNL8 | 0.85 | 0.6 | 0.09 |
| Aperture (mm) | Length(mm) | Applicable screw diameter (mm) | Screw size (mm) | pc/box | |
|---|---|---|---|---|---|
| HM1000600 | 6 | 50 | 3.5-5 | M4 | 100 |
| HM1000800 | 8 | 60 | 4.5-6 | M5 | 50 |
From $110.00
Unit price perFrom $110.00
Unit price perOriginally imported from Switzerland, Mungo brand MN series nylon bolt sleeves and nylon nail sleeves are plastic anchor bolts, also known as nylon anchor bolts, plastic plugs, plastic geckos, nylon anchor bolts, and nylon wall bolts.
feature of product:
product material:
High quality polyamide (Polyamide PA6)
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, bricks, limestone bricks, natural stone, and gypsum board
Product Usage:
Photo frame fixing, light stand fixing, support frame, electrical switch, railing fixing
Originally imported from Switzerland, the Mungo brand MU series multi-purpose nylon bolt sleeves and nylon nail sleeves are plastic anchor bolts, also known as nylon anchor bolts, plastic plugs, plastic geckos, nylon anchor bolts, and nylon wall bolts.
feature of product:
product material:
High quality polyamide (Polyamide PA6)
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, bricks, hollow bricks, plywood, gypsum board, light steel frame
Product Usage:
Support frame, electrical switch, railing fixation, photo frame fixation, light stand fixation
feature of product:
product material:
High quality polyamide (Polyamide PA6)
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, bricks, hollow bricks, plywood, gypsum board, light steel frame
Product Usage:
Support frame, electrical switch, railing fixation, photo frame fixation, light stand fixation
Origin:
Switzerland
feature of product:
product material:
Applicable substrate:
Product Usage:
installation method:
Product specifications:
| Product number | Aperture (mm) | Length(mm) | Applicable screw diameter (mm) | Screw size (mm) | branch/card |
|---|---|---|---|---|---|
| MN52550 | 5 | 25 | 2.6-4 | M3 | 50 |
| MN63030 | 6 | 30 | 3.5-5 | M4 | 30 |
| MN84020 | 8 | 40 | 4.5-6 | M5 | 20 |
feature of product:
product material:
Applicable substrate:
Product Usage:
installation method:
Product specifications:
Product specifications:
| Product number | Aperture(mm) | Length(mm) | Applicable screw diameter (mm) | Screw size (mm) | branch/card |
|---|---|---|---|---|---|
| MNK52550 | 5 | 25 | 2.6-4 | M3 | 50 |
| MNK63030 | 6 | 30 | 3.5-5 | M4 | 30 |
| MNK84020 | 8 | 40 | 4.5-6 | M5 | 20 |
| MNK105010 | 10 | 50 | 6.0-8 | M6 | 10 |

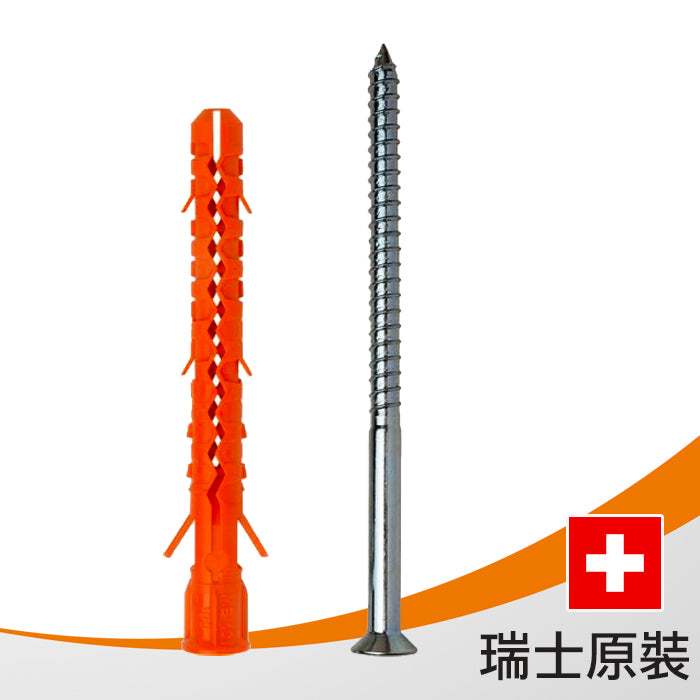

Swiss Mungo MB frame plastic anchor bolt nylon bolt sleeve + galvanized screw (HM1122310)
From $1,320.00
Unit price perSwiss Mungo MB frame plastic anchor bolt nylon bolt sleeve + galvanized screw (HM1122310)
From $1,320.00
Unit price perOriginally imported from Switzerland, Mungo brand MB series frame uses plastic anchors, including nylon bolt sleeves + galvanized screws.
feature of product:
product material:
High quality polyamide (Polyamide PA6)
Screws: galvanized
Applicable substrate:
Suitable for various types of building materials, such as aerated concrete, hollow bricks, and gypsum boards
Product Usage:
External wall fixed, fixed under structure
| Allowable load of hollow bricks (kN) | Allowable load of lightweight concrete (kN) | Allowable load of aerated concrete (kN) | Bending moment (Nm) galvanized steel Fz= 0 kN | Bending moment (Nm) galvanized steel Fz= 0.6 kN | Bending moment (Nm) stainless steel Fz= 0 kN | Bending moment (Nm) stainless steel Fz= 0.6 kN | |
|---|---|---|---|---|---|---|---|
| MB 8 | 0.4 | 0.15 | - | 3.4 | 3.1 | 3.2 | 2.9 |
| MB 10 | 0.8 | 0.25 | 0.3 | 11.1 | 10.6 | 10.4 | 9.9 |
| Product number | Nail sleeve hole diameter (mm) | Length(mm) | Available length(mm) | Screw diameter(mm) | Screw length(mm) | Screw specifications | pc/box |
|---|---|---|---|---|---|---|---|
| HM1122310 | 10 | 100 | 30 | 7 | 105 | PZ3 | 50 |
| HM1122312 | 10 | 120 | 50 | 7 | 125 | PZ3 | 50 |
| HM1122316 | 10 | 160 | 90 | 7 | 165 | PZ3 | 50 |
| HM1122320 | 10 | 200 | 130 | 7 | 205 | PZ3 | 50 |
Originally imported from Switzerland, the Mungo brand MWT washbasin fixing anchor bolt is suitable for fixing washbasins, urinals and other bathroom equipment.
feature of product:
High quality polyamide (Polyamide PA6)
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, aerated concrete, hollow bricks, bricks, and natural stone
Product Usage:
Wash basin, fixed urinal
| Nail set | concrete C20/25 |
Bricks | Aerated Concrete | sand rock | Hollow brick |
|---|---|---|---|---|---|
| MQ 10 | 1.9 | 1.1 | 0.3 | 1.8 | *0.45 |
Percussion nylon quick nails, also known as nylon nails, nylon nails, grid nails or vertical grid nails, are hardware tools that can fix objects on walls or ceilings.
Utilizing the elasticity of nylon material, it can expand in the hole after knocking, forming friction, so that the object and the wall are closely combined, replacing the trouble of buying plastic plugs and nails. The combined nylon quick knocking nails eliminate the need for Save you the trouble and make your construction faster.
feature of product:
| ● | Quick and easy installation, high stability |
| ● | Use a hammer to install and secure |
| ● | Provides quick knock protection, high knock load force to increase bolt sleeve gripping force |
| ● | High quality nylon material |
| ● | percussion fixation |
| ● | Suitable for wood, corrugated board, brick wall, cement wall |
Origin:
Taiwan
Swiss original percussion nylon quick nails (nylon quick percussion nails, nylon plastic anchors, nylon gecko screws, nylon screw anchors, percussion nylon Anka anchors) are now the most commonly used, easy to construct and install, replacing ordinary purchases Plastic plugs don't have to worry about buying nails. The combined quick nails save you the trouble and make the construction faster.
feature of product:
Packing quantity:
100 pieces
Origin:
Switzerland
White iron screw knock-type nylon quick nails, also known as nylon nails, nylon nails, grid nails or vertical grid nails, are a convenient, efficient and multifunctional fixing tool specially used for fixing objects on walls or ceilings.
White iron screws are not easy to rust, and have nylon elastic properties that can automatically expand and form friction after being struck to ensure a firm connection between the object and the wall, improving convenience and efficiency, allowing you to complete various fixing tasks more quickly .
White iron screw knock-type nylon quick nails are not only convenient and fast, but also avoid the trouble of purchasing additional plastic plugs and nails during the construction process.
feature of product:
| ● |
QUICK AND EASY INSTALLATION, HIGH STABILITY: Installing the knock-on nylon quick nails is very simple and can be done by just tapping with a hammer, and has excellent stability to ensure that the object is firmly fixed to the wall or ceiling. |
| ● | Provides quick knock protection and increases fixing force: This screw is specially designed with quick knock protection, which can withstand high knock load while increasing the fixing force between the screw and the wall to ensure firmness and durability. |
| ● | High-Quality Nylon Material: Made of high-quality nylon material, it has superior durability and corrosion resistance and can be used for a long time without damage. |
| ● |
Multifunctional application: Nylon quick nails are suitable for a variety of surfaces, including wood, corrugated board, brick walls and cement walls, etc. They are widely used in home decoration, construction projects and other occasions where objects need to be fixed. |
Origin:
Taiwan
Percussion nylon quick nails, also known as nylon nails, nylon nails, grid nails or vertical grid nails, are hardware tools that can fix objects on walls or ceilings.
Utilizing the elasticity of nylon material, it can expand in the hole after knocking, forming friction, so that the object and the wall are closely combined, replacing the trouble of buying plastic plugs and nails. The combined nylon quick knocking nails eliminate the need for Save you the trouble and make your construction faster.
feature of product:
| ● | Quick and easy installation, high stability |
| ● | Use a hammer to install and secure |
| ● | Provides quick knock protection, high knock load force to increase bolt sleeve gripping force |
| ● | High quality nylon material |
| ● | percussion fixation |
| ● | Suitable for wood, corrugated board, brick wall, cement wall |
Origin:
Taiwan
Originally imported from Switzerland, Mungo brand MNA percussive nylon quick nails, also known as nylon nails, nylon nails, grid nails or vertical grid nails, are hardware tools that can fix objects on the wall or ceiling.
Utilizing the elasticity of nylon material, it can expand in the hole after knocking, forming friction, so that the object and the wall are closely combined, replacing the trouble of buying plastic plugs and nails. The combined nylon quick knocking nails eliminate the need for Save you the trouble and make your construction faster.
feature of product:
product material:
High quality polyamide (Polyamide PA6)
Screws: galvanized
Applicable substrate:
Suitable for various types of building materials, such as concrete, sandstone, bricks, and natural stone
Product Usage:
wooden structure, skirting boards, frame
| Allowable load (kN) | Concrete C20/25 | Bricks | sandstone |
|---|---|---|---|
| MNA 5 | 0.25 | 0.2 | 0.15 |
| MNA 6 | 0.3 | 0.25 | 0.2 |
| MNA 8 | 0.4 | 0.3 | 0.25 |
| MNA 10 | 0.5 | 0.4 | 0.3 |
| Product number | Specification | Nail set hole diameter (mm) |
length (mm) |
Neck diameter (mm) |
available length (mm) |
Nail set pattern | Screw specifications | pc/box |
|---|---|---|---|---|---|---|---|---|
| HM1122606S | MNA6x60s | 6 | 60 | 9 | 30 | Oblique mouth type | PZ2 | 100 |
| HM1122808S | MNA8x80s | 8 | 80 | 12 | 40 | Oblique mouth type | PZ3 | 100 |
| HM1122810S | MNA8x100s | 8 | 10 | 12 | 60 | Oblique mouth type | PZ3 | 100 |
| HM11229101S | MNA10x100s | 10 | 100 | 13 | 50 | Oblique mouth type | PZ3 | 50 |
| HM112350324G-300 | MNA-G 5x30 | 5 | 30 | 11 | 25 | Flat mouth type | PZ2 | 300 |
| HM1122505Z | MNA5x50z | 5 | 50 | 8 | 25 | Flat mouth type | PZ2 | 200 |
| HM11228061Z | MNA8x60z | 8 | 60 | 15 | 20 | Flat mouth type | PZ3 | 100 |
| HM1122810Z | MNA8x100z | 8 | 10 | 15 | 60 | Flat mouth type | PZ3 | 100 |
| HM1122812Z | MNA8x120z | 8 | 120 | 15 | 80 | Flat mouth type | PZ3 | 100 |
feature of product:
Applicable substrate:
Product Usage:
installation method:
Product specifications:
| Product number | Nail sleeve hole diameter (mm) | Length(mm) | Neckline diameter (mm) | Available length(mm) | Screw specifications | Group/Card |
|---|---|---|---|---|---|---|
| MNA81202 | 8 | 120 | 15 | 80 | Rice word PZ3 | 2 |
| MBR101002 | 10 | 100 | 13 | 50 | Rice word PZ3 | 2 |
| MBR101202 | 10 | 120 | 13 | 70 | Rice word PZ3 | 2 |
Technical Information:
| Product number | Concrete C20/25 | Bricks | sandstone |
|---|---|---|---|
| MNA 8 | 0.4 | 0.3 | 0.25 |
| MNA 10 | 0.5 | 0.4 | 0.3 |
Allowable load (kN)
Safety factor: 5 / 1kN=100kg
Product specifications:
| model | size | branch/card |
| E02D-Z1105030 | M5x30mm | 8 |
| E02D-Z1106040 | M6x40mm | 5 |
Material:
Origin:
Taiwan
Product specifications:
| ● | M5x30 |
| ● | M6x40 |
Material:
Origin:
Taiwan
feature of product:
product material:
installation method:
Application icon:
Product specifications:
| Product number | Bolt sleeve hole diameter (mm) | Bolt sleeve length (mm) | branch/card |
|---|---|---|---|
| MNAS53010 | 5 | 30 | 10 |
Origin:
feature of product:
product material:
installation method:
Application icon:
Product specifications:
| Product number | Aperture (mm) | Length(mm) | branch/card |
|---|---|---|---|
| MNA53010 | 5 | 30 | 10 |
| MNA6356 | 6 | 40 | 6 |
| MNA6556 | 6 | 55 | 6 |
| MNA8604 | 8 | 60 | 4 |
| MNA8804 | 8 | 80 | 4 |
