Provide high-quality industrial endoscope inspection tools (pipe inspection endoscopes, water pipe endoscopes, pipe endoscopes, endoscopes, snake tube endoscopes), specially designed for internal inspection of industrial equipment inspections. Suitable for a wide range of industrial inspection applications, including mechanical inspection, automotive inspection and internal pipeline fault detection. Endoscopes can easily enter small spaces, provide clear images and accurate detection results, improve detection efficiency, and quickly solve faults inside pipelines.

Professional-grade industrial endoscope, with a handheld 3.5-inch screen design and an included SD memory card to store photos and videos. You can take photos and view them immediately to know the results immediately and formulate relevant strategies. It is no longer necessary to check whether the drilled holes are round and flat, whether the pipe welding is complete , whether the car engine has carbon deposits , whether there is any problem inside the tool , where the pipe is blocked, where there is a leak... and other issues. It is time-consuming and labor-intensive to guess the damage pattern or simply saw or cut it open.

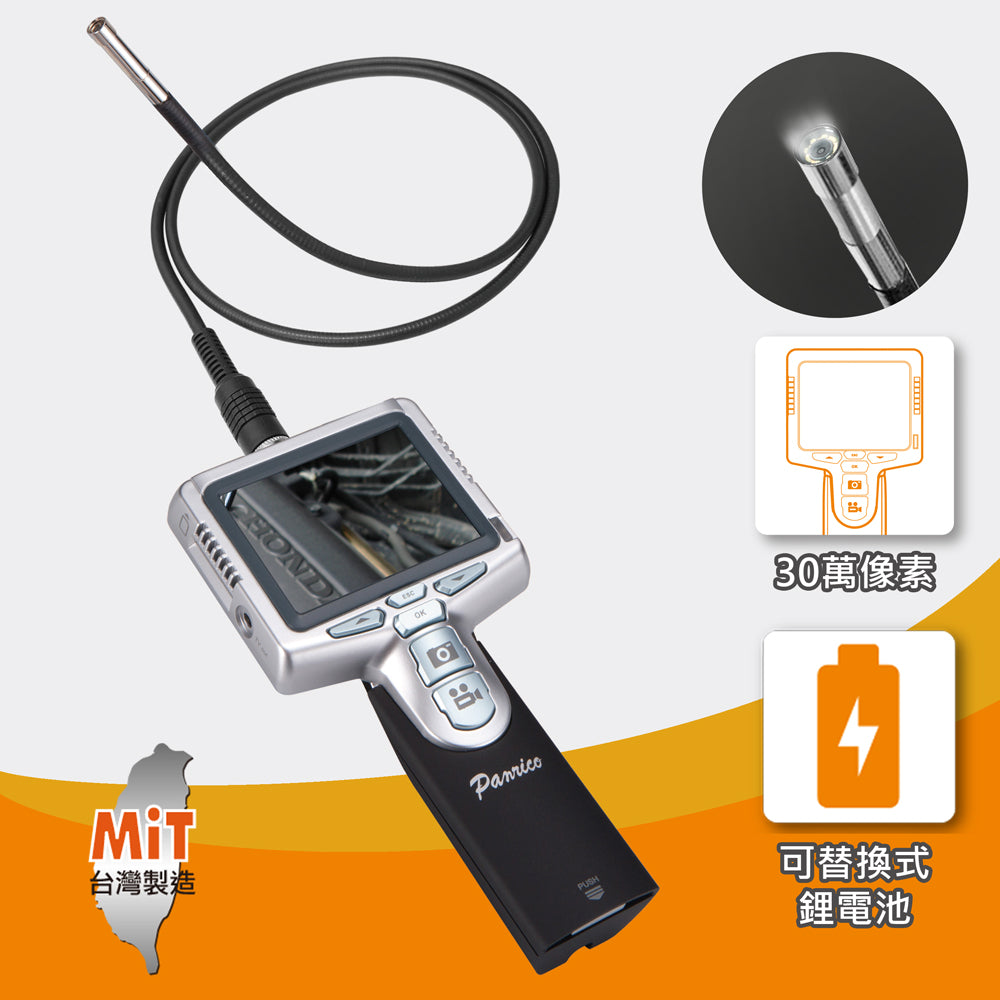

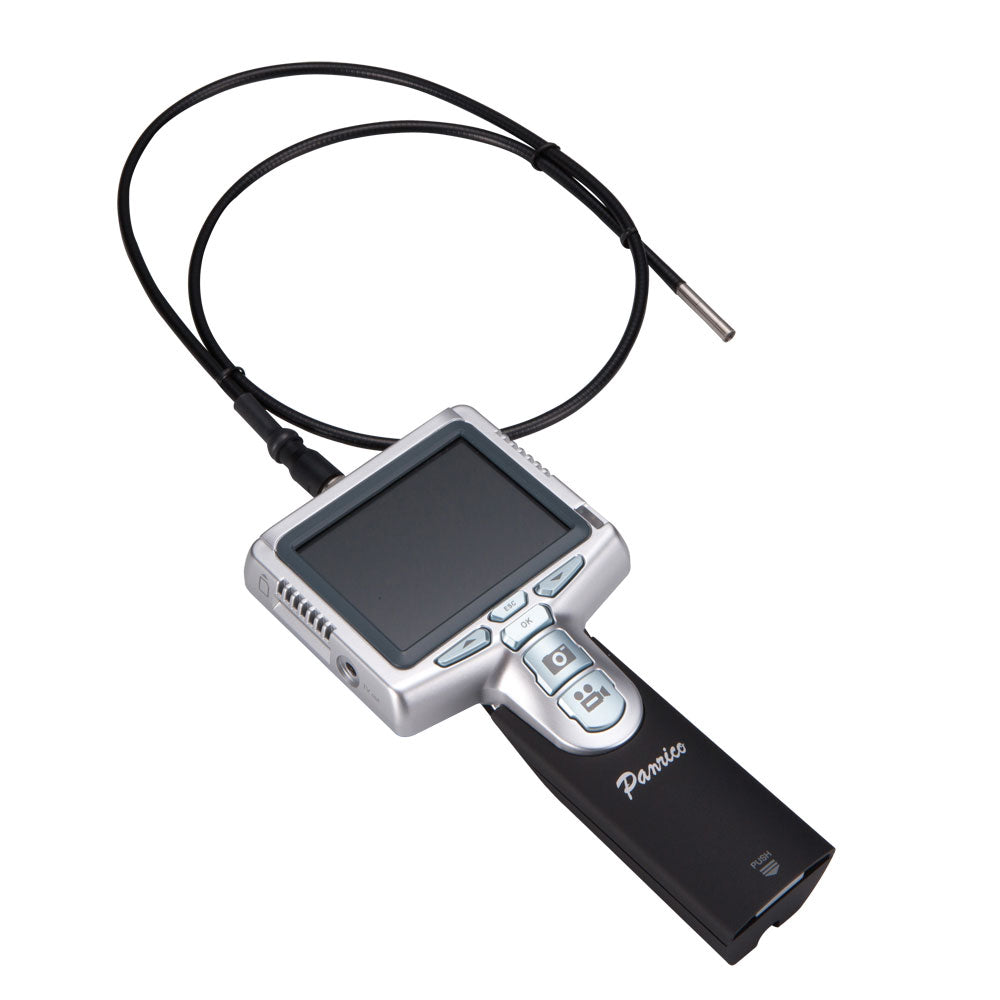

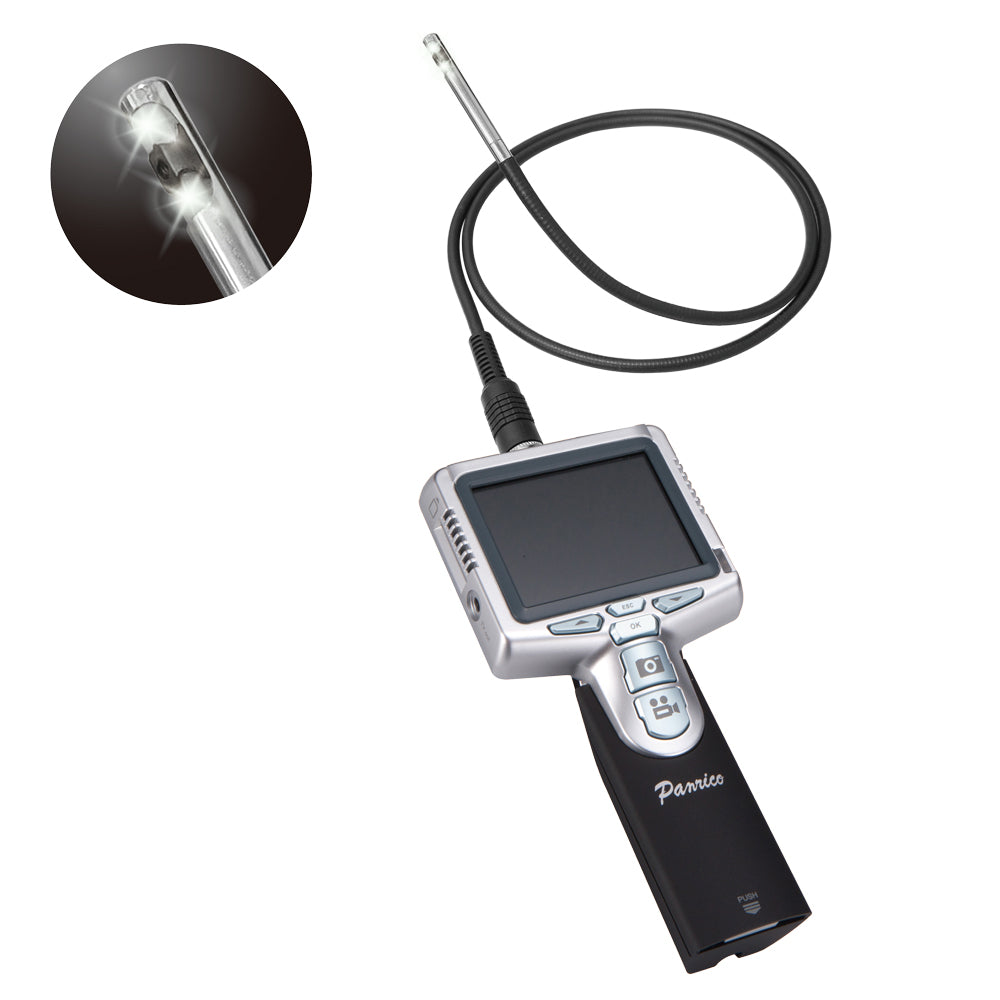

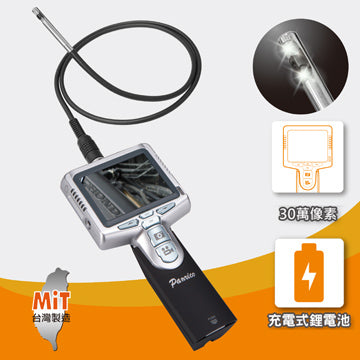

PST-2486 imaging industrial endoscope can quickly observe and inspect objects without damaging them.

PST-2486 image-type industrial endoscope is manufactured in Taiwan and has CE/FCC certification. It also has Taiwan and EU patents and is of reliable quality. The product is equipped with a 300,000-pixel (real pixels, not ordinary simulated pixels) 5.5mm lens with a one-meter-long coiled tube, and the image is super clear. Contains an adjustable light source that allows you to view in the dark. It is used for evidence collection, water, electricity, pipeline and air conditioning maintenance, automobile maintenance, pipeline detection, mold inspection, ecological flora and fauna observation and transportation, machinery maintenance, etc. kind of use.

In order to save costs, some endoscope products use disposable dry batteries. Because endoscopes consume a lot of power, the subsequent result is that you have to spend money to buy batteries, which is not environmentally friendly and hurts your wallet. PST-2486 imaging industrial endoscope uses replaceable rechargeable lithium batteries, which can be recharged and are more environmentally friendly and economical than other general disposable batteries.

The PST-2486 imaging industrial endoscope has a USB port that can transfer the contents of the SD card to a computer. There is also an AV terminal output port, allowing you to directly transmit images to a TV and watch them on the TV screen.

feature of product:

• Highly portable, can be used in any space, held in one hand, and extremely convenient for maintenance
• 3.5-inch TFT-LCD screen, capable of dynamic photography/still photography storage, super convenient to operate
• 300,000-pixel 5.5mm CMOS lens, extremely clear picture quality (3.9mm~12mm lenses are also available)
• It is equipped with 1M long coiled tube by default, and can also be purchased to 30M long.
• Equipped with a 4GB SD memory card, it can take photos and videos, and you can browse and view the stored photos and videos at any time.
• The 5.5mm lens is equipped with 4 ultra-high-brightness LED lights, the brightness can be adjusted, and dark corners can be clearly displayed
• Able to view object status in a small workspace
• AV terminal can output images to TV
• USB port can be connected to a computer to view photo and video files
• Uses rechargeable high-capacity lithium battery, can be used for about 2 hours each time
• IP67 cable and lens, dustproof and waterproof
• CE/FCC certification, Taiwan patent: D137083/EU patent: 001193346

Product Usage:

• Firefighting: Search and Rescue
• Environmental protection: evidence search
• Police use: search, attack, etc.
• Home repair: decoration, water and electricity pipes, air conditioning, etc.
• Research observations: ecological animals and plants, etc.
• Transportation maintenance: automobiles/motorcycles, airplanes, ships, etc.
• Mechanical maintenance: lathes, excavators, bulldozers and large machinery, etc.

Product specifications:

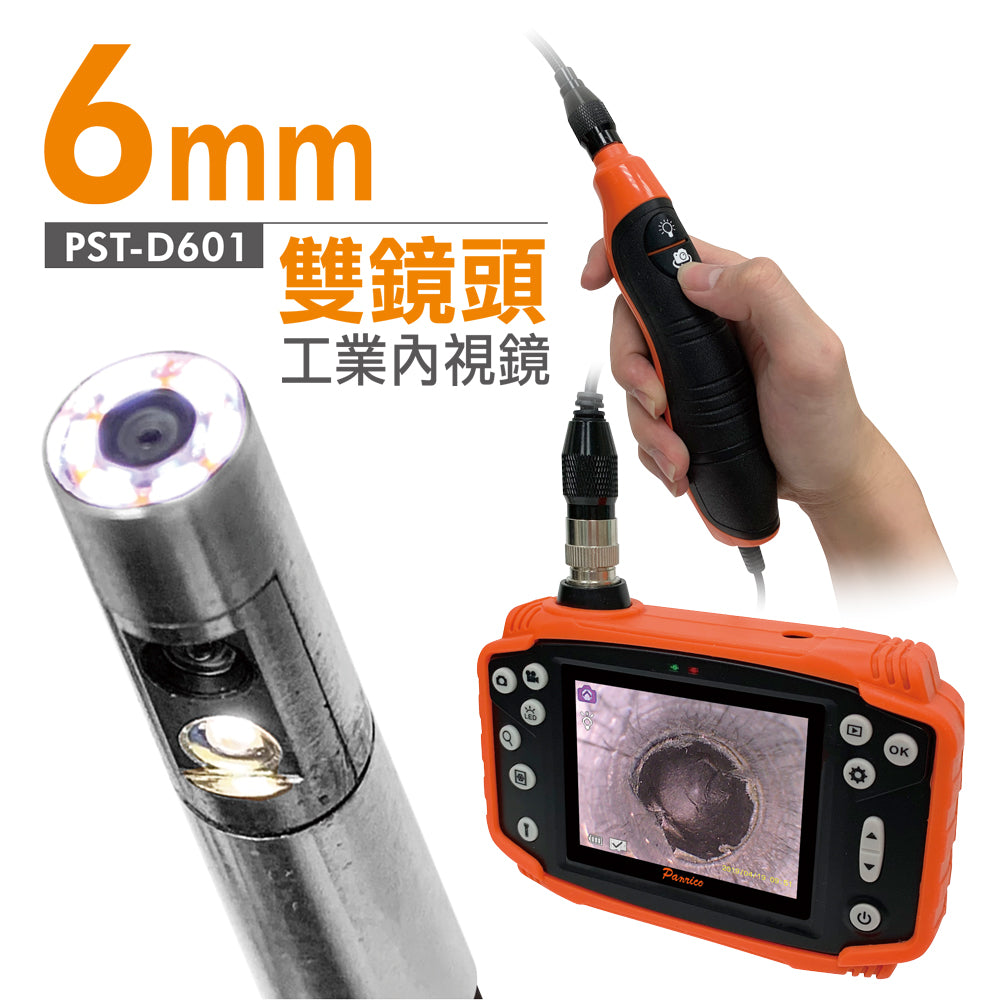

Innovative dual-lens industrial endoscope inspection tool for a variety of industrial applications. The PST-D601 dual-lens pipeline inspection endoscope has excellent image quality and inspection capabilities, providing precise visual inspection in small spaces. Endoscopes are suitable for industrial pipeline inspection and automobile maintenance and other fields. They can help you perform inspection and repair work quickly and accurately to meet the needs of industrial inspection.

feature of product:

• Dual lens, 640x 480 resolution, easy to switch between front camera and side camera, one-click switching.
• The lens diameter is 6mm. There are 6 white LED lights built into the front lens and 1 white LED light built into the side lens. The brightness intensity can be adjusted.
• The focal length of the front lens is 15-100mm; the focal length of the side lens is 3-50mm, making it easy to inspect at very close range.
• Photo pixels: 1600 x 1200, close to 2 million pixels.
• Uses sturdy and scratch-resistant sapphire glass lenses.
• 4x zoom control.
• Multi-language support.
• IP67 waterproof, oil-proof and dust-proof camera lens.
• 3.5-inch LCD monitor provides clear QVGA resolution viewing.
• Powered by 18650 lithium-ion battery (2600mAh), it can run continuously for about 5 hours.
• Ergonomic design, easy to operate. The main unit is covered with a soft cover, and the stand supports the monitor upright, making it easy to observe the monitor.

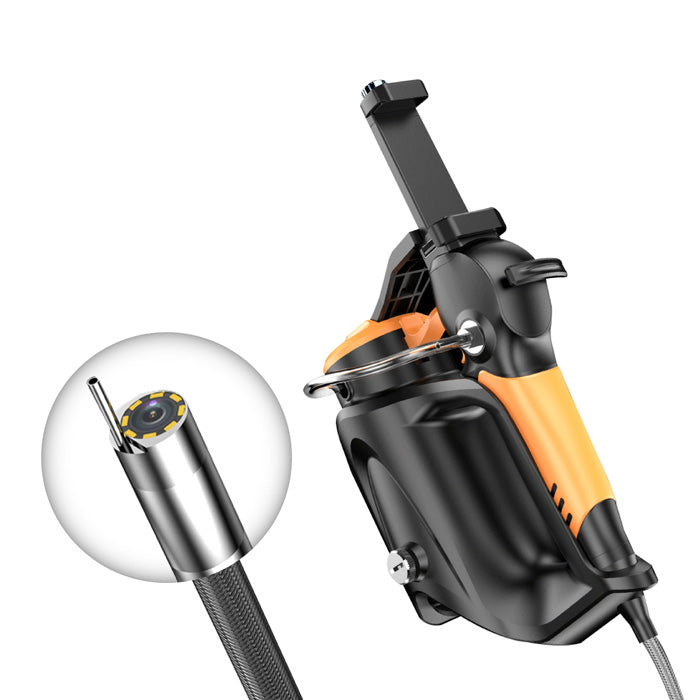

The swiveling two-way 180° lens can clean the endoscope of carbon deposits, and the high-sensitivity two-way steering makes cleaning easier.

720P HD ultra-high image quality, IP67 waterproof design, equipped with related chemical spray cans, has a cleaning function that can spray cleaning fluid to hard-to-reach locations, and is suitable for air conditioning cleaning and maintenance, bearing lubrication, engine carbon deposit cleaning, and rust removal cleaning.

Extremely close range side-view industrial endoscope, designed for wafer inspection and mechanical parts inspection. This snake tube endoscope is suitable for wafer fabs and other industrial inspection environments, providing high-precision inspection solutions. The ultra-close side-view endoscope can detect in a small space and at an extremely close distance (closest 4-5mm), and provide clear images and accurate detection results. Whether you need to perform wafer inspection or mechanical inspection, the PST-2486-9155 industrial endoscope can provide high-quality solutions.

Product Features:

• 300,000 pixel 5.5mm lens with built-in 90° industrial endoscope, two focal length ranges are available: 4mm-5mm / 10mm-16mm.
• The 4mm - 5mm focal length is suitable for inspecting objects at very close distances, and the 10-16mm focal length is suitable for inspecting objects at short distances.
• 5.5mm lens 90° focal length 4mm-5mm industrial endoscope, LED light is designed with diffuse light, will not cause white exposure due to reflection of smooth objects.
• 3.5” LCD display, capable of taking photos and recording videos.
• IP67 dust-proof and splash-proof lens.
• Brightness intensity can be adjusted.
• Replaceable lithium battery design.
• Multi-language support.
• Ergonomic design, easy to hold and operate.

Scope of application:

• Inspection and maintenance of precision machinery and equipment: bearings, printers, molds, lathes, etc.
• Quality control: incoming material inspection, finished product shipment inspection
• Factory production line: process project testing, wafer process confirmation, circuit board defect repair

Specifications:

*If you need this product, please email or call for quotation

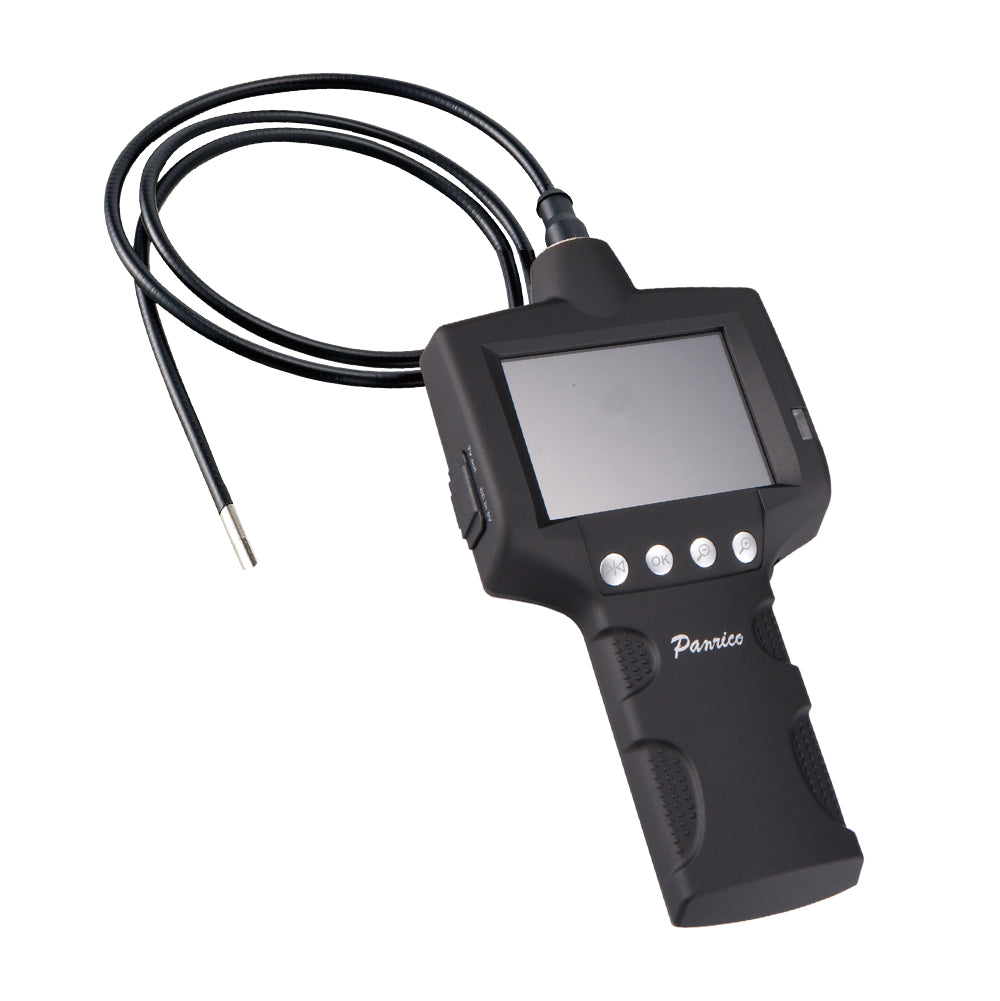

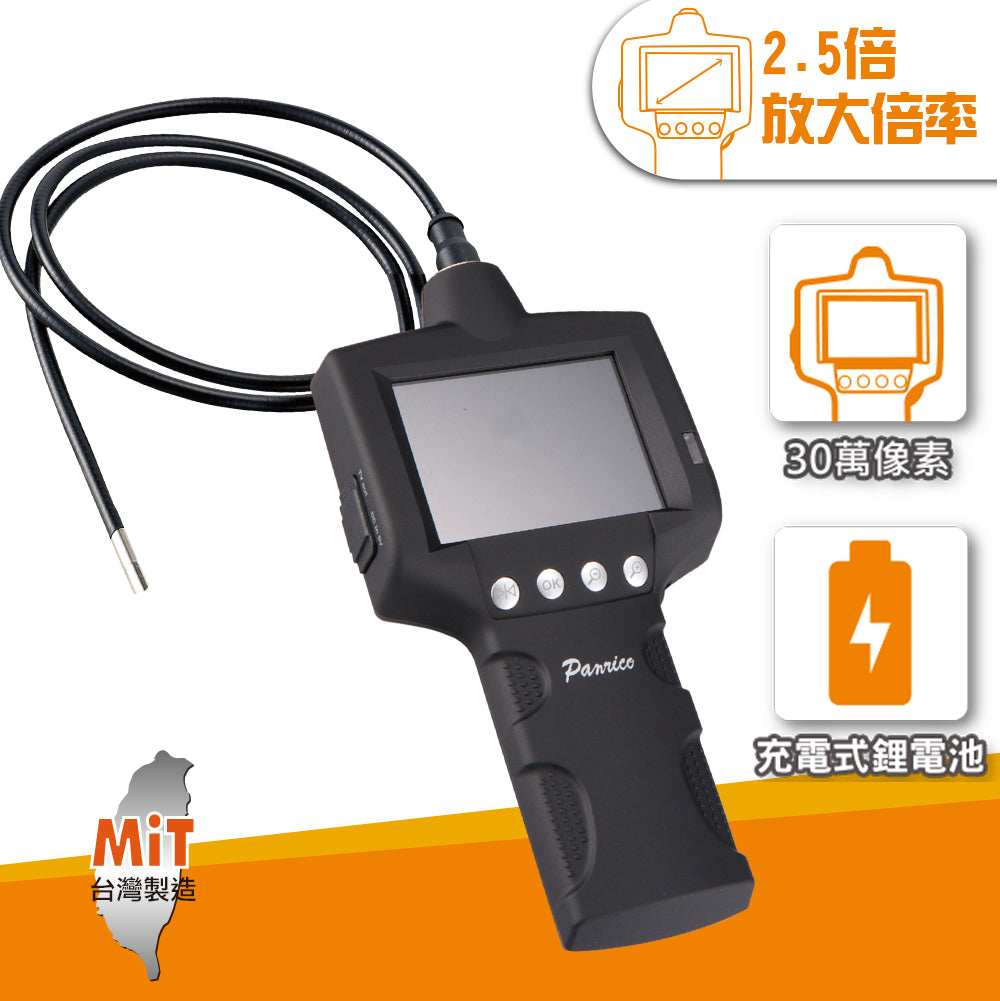

Provide comprehensive industrial internal inspection solutions ~ industrial endoscopes (pipeline inspection endoscopes, snake tube endoscopes, pipeline inspection endoscopes, in-pipe cameras) can be used for industrial pipeline inspection, mechanical maintenance and parts problem detection quickly and accurately Find the problem point exactly.
Whether you need pipeline repair or industrial equipment inspection, our pipe endoscopes can provide efficient and reliable solutions to improve inspection efficiency and accuracy.

Product Features:

• Made in Taiwan PST-2488 industrial inspection endoscope, industrial endoscope, pipeline endoscope, pipeline endoscope inspection detector
• 3.5-inch screen design, can be connected to an external TV screen
• 5.5mm 300,000-pixel lens with 1M length coil
• The lens is equipped with an ultra-white LED light, the brightness can be adjusted, and the dark corners can be clearly displayed.
• Industrial inspection endoscope with 1.0, 1.5, 2.0, 2.5 times magnification function
• Built-in high-capacity lithium battery, rechargeable, more environmentally friendly and economical than other general disposable batteries
• Designed with a mirror function, your opposite image can be immediately converted into a normal image, which is very convenient to use.
• Industrial endoscope, with CE/FCC certification, Taiwan patent: D148587/EU patent: 001946914-0001

Product Usage:

• Firefighting: Search and Rescue
• Environmental protection: evidence search
• Police use: search, attack, etc.
• Home repair: decoration, water and electricity pipes, air conditioning, etc.
• Research observations: ecological animals and plants, etc.
• Transportation maintenance: automobiles/motorcycles, airplanes, ships, etc.
• Mechanical maintenance: lathes, excavators, bulldozers and large machinery, etc.

Product specifications:

Remark:
1. PST-2488 industrial endoscope only has the function of viewing and inspection, but does not have the function of taking pictures and recording videos.
2. The remaining lengths will be quoted separately.

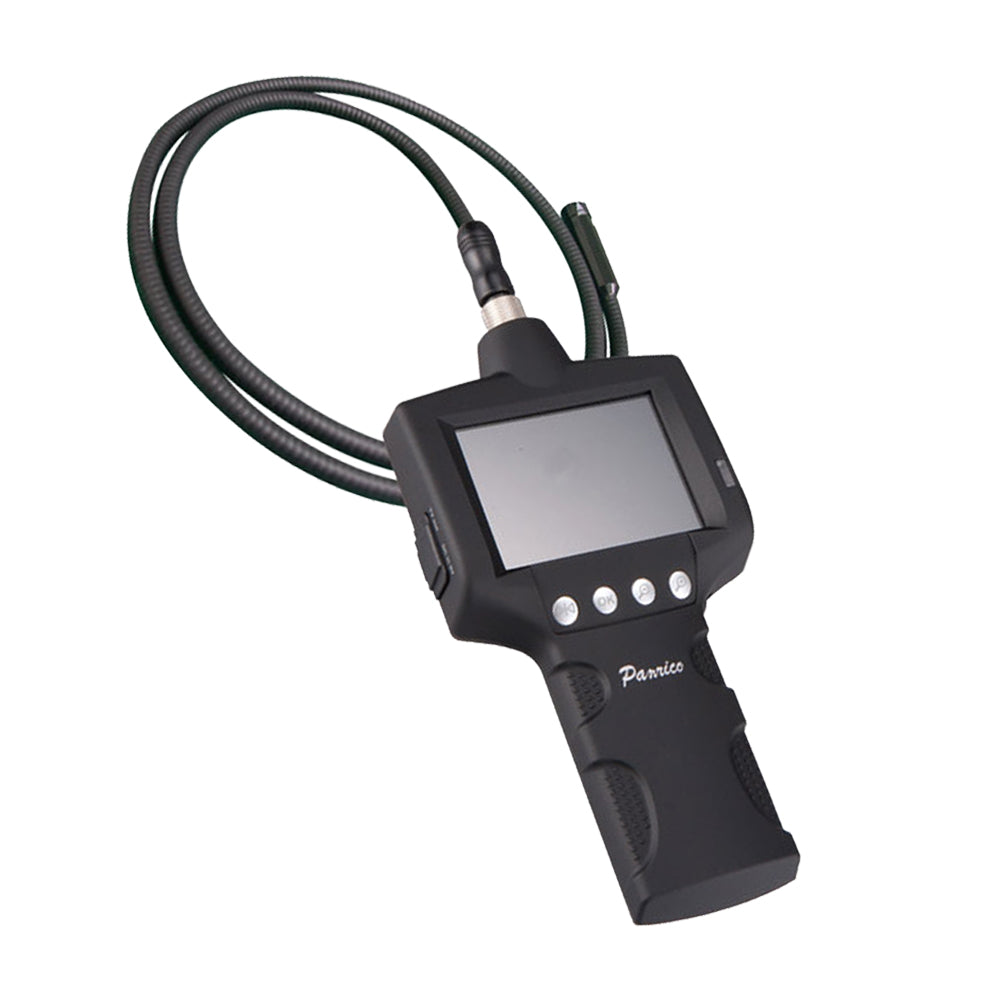

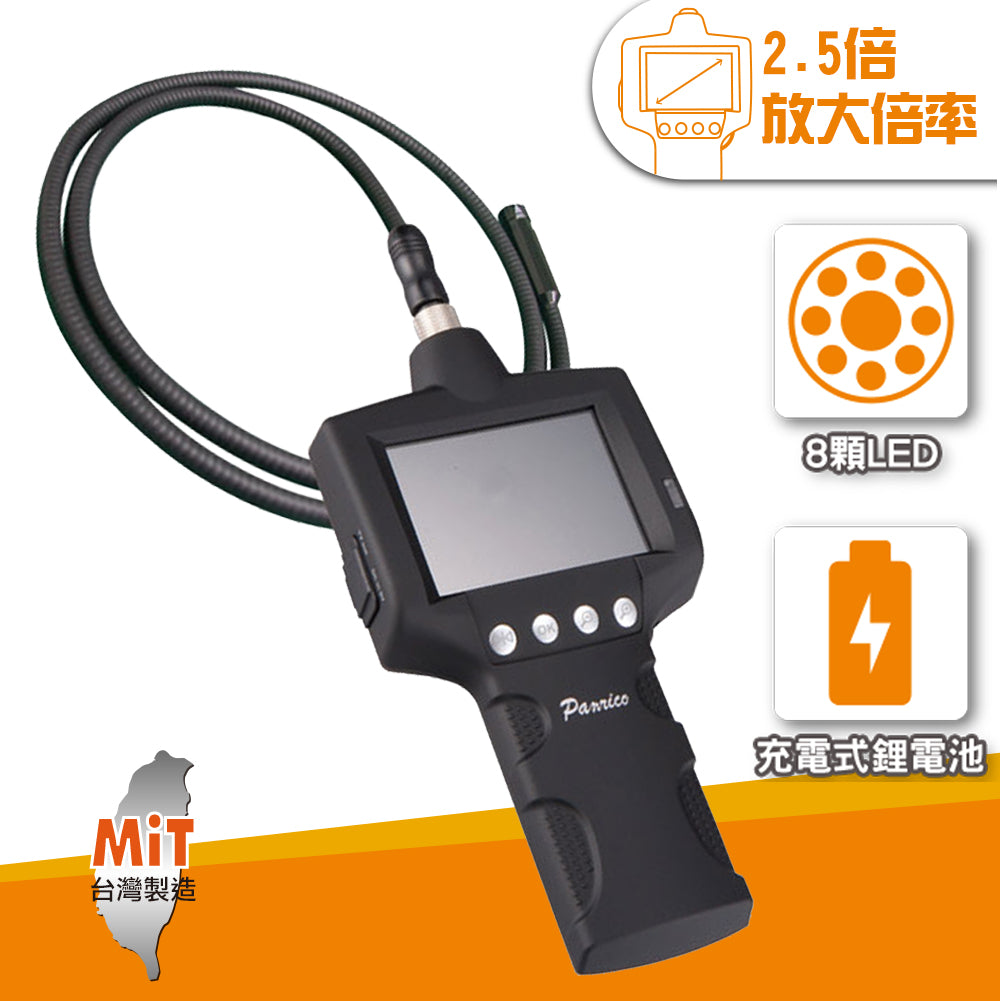

High-quality industrial endoscopes (pipe endoscopes, water pipe endoscopes, pipeline inspection endoscopes, snake tube endoscopes) made in Taiwan are widely used in industrial inspections, including auto repair inspections, pipeline inspections and industrial object inspections . Endoscopes can easily enter narrow pipes and tubes, providing clear images and detailed visual inspections. Whether you have an industrial inspection or automotive repair application, our endoscopes can help you quickly and accurately detect problems so that appropriate repairs and maintenance can be performed.

Product Features:

• Made in Taiwan PST-2488 industrial inspection endoscope, industrial endoscope, pipeline endoscope, pipeline endoscope inspection detector
• 3.5-inch screen design, can be connected to an external TV screen
• 12mm 400,000-pixel CCD lens with 1M length coil
• The 12mm lens comes with 8 ultra-white LED lights, the brightness can be adjusted, and dark corners can be clearly seen
• Industrial inspection endoscope with 1.0, 1.5, 2.0, 2.5 times magnification function
• Built-in high-capacity lithium battery, rechargeable, more environmentally friendly and economical than other general disposable batteries
• Designed with a mirror function, your opposite image can be immediately converted into a normal image, which is very convenient to use.
• Industrial endoscope, with CE/FCC certification, Taiwan patent: D148587/EU patent: 001946914-0001

Product Usage:

• Firefighting: Search and Rescue
• Environmental protection: evidence search
• Police use: search, attack, etc.
• Home repair: decoration, water and electricity pipes, air conditioning, etc.
• Research observations: ecological animals and plants, etc.
• Transportation maintenance: automobiles/motorcycles, airplanes, ships, etc.
• Mechanical maintenance: lathes, excavators, bulldozers and large machinery, etc.

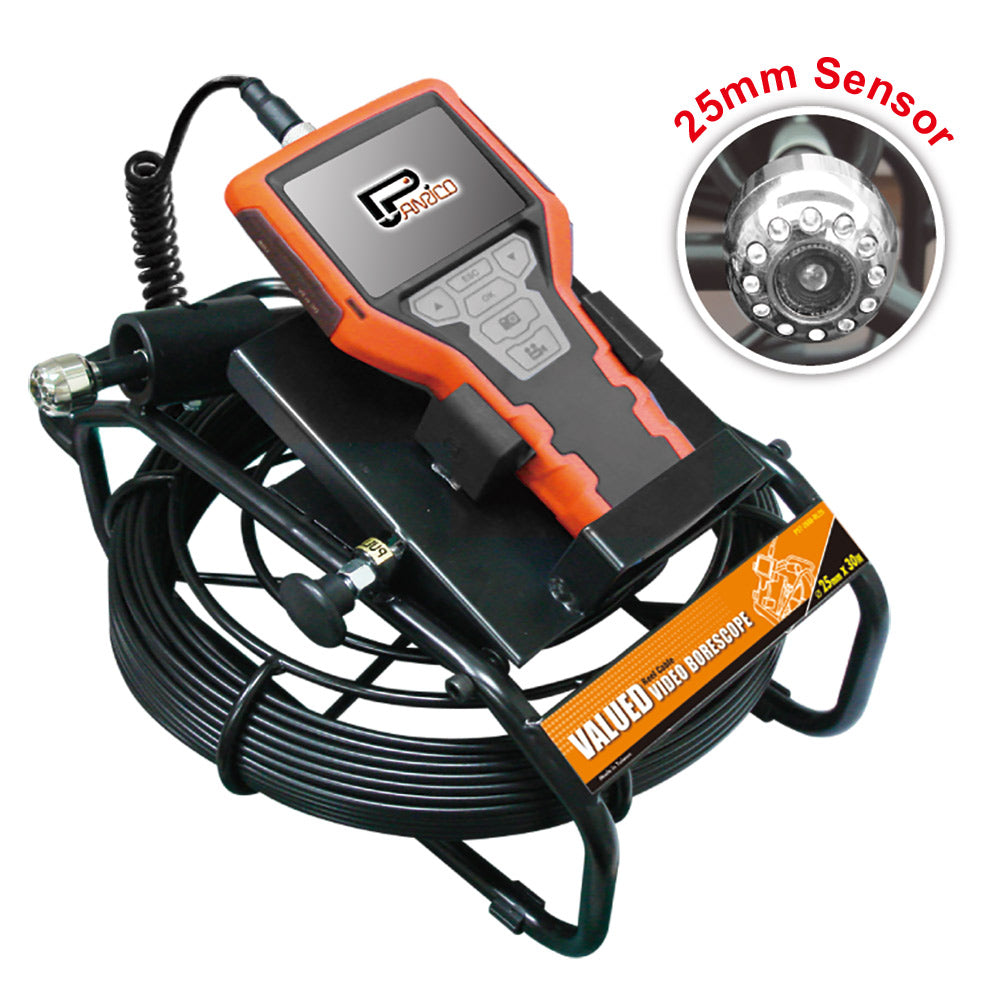

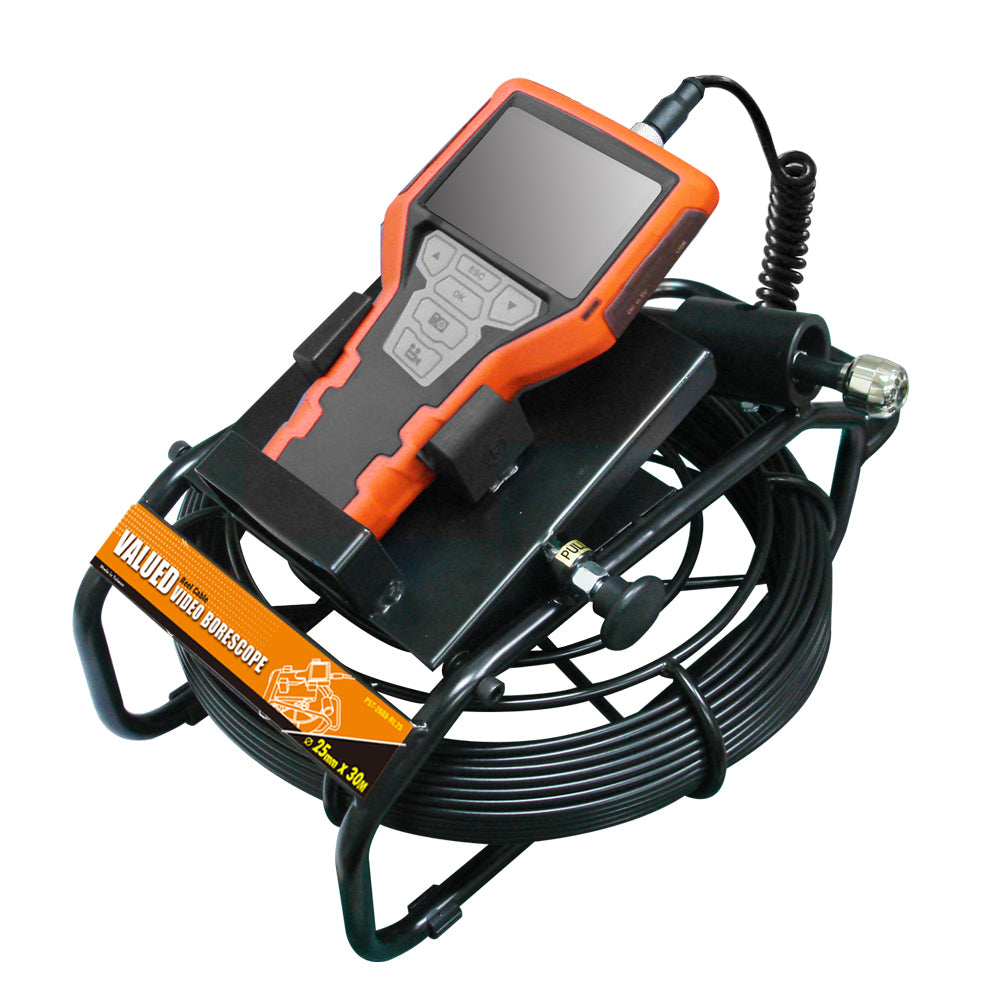

Provide high-quality industrial endoscope pipeline cameras (pipeline inspection cameras, in-pipe cameras, in-pipe inspection cameras, in-pipe inspection endoscopes), which can be used for pipeline detection, pipeline obstruction detection and pipeline inspection. Special industrial endoscope pipeline detectors for pipelines can provide you with accurate and efficient solutions.

The built-in SD memory card of the tunnel endoscope camera can store photos and images, which can be viewed and browsed immediately after the shooting is completed, or transferred to a computer. The main unit is equipped with an AV terminal port, which can transmit endoscope images to the TV, which is very convenient to use.

The tube endoscope camera made in Taiwan has CE/FCC certification and is of reliable quality. The product is equipped with a 300,000-pixel (real pixels, not ordinary simulated pixels) 25mm lens coil, and the image is super clear. Contains an adjustable light source that allows you to see in the dark. It is suitable for pipeline inspection, gas pipes, oil pipelines, drainage pipes and factory piping inspection. It can understand pipeline cracks, scratches and rust damage of drainage pipes. and blockage conditions.

In order to save costs, some endoscope products use disposable dry batteries. Because endoscopes consume a lot of power, the subsequent result is that you have to spend money to buy batteries, which is not environmentally friendly and hurts your wallet. The pipeline inspection camera uses a non-keyed battery or a dry cell battery. It uses a replaceable rechargeable lithium battery, which can be recharged and charged and discharged more than 600 times. It is more environmentally friendly and economical than other general disposable batteries.

The tube endoscope camera has a 2-photo comparison function, allowing you to compare photos before and after repair, making it easier to discuss work with partners or explain to customers, allowing you to communicate with zero errors.

feature of product:

• Pipe endoscope cameras made in Taiwan (pipeline inspection cameras, in-pipe cameras, in-pipe inspection cameras, pipeline detectors, in-pipe inspection peepscopes, pipe-specific industrial endoscopes)
• Professional grade industrial endoscope, 3.5" TFT LCD screen, capable of dynamic photography/static photography storage, super easy to operate
• Using a 300,000-pixel high-resolution 25mm CMOS lens and high-quality optical lenses, the full-focus lens includes a super wide angle of 140 ^° , a normal lens of 73 ^° , a focal length of 5-60 cm, and a super clear field of view.
• Equipped with camera and video functions, the system is equipped with a 4GB SD memory card, allowing you to browse and view stored photos and videos at any time
• Highly sensitive 12 powerful white LEDs, the brightness can be adjusted, and the dark corners can be clearly displayed
• 2x digital zoom, multiple languages ​​available
• Gooseneck design at the front of the lens makes it easier to turn corners
• Can be output to TV and computer for viewing
• Use high-capacity lithium battery with long life
• IP67 dustproof and waterproof coefficient
• Snake tube length selection: 5M ~ 50M
• The fiberglass pipe material is a coiled pipe, which has strong support, sufficient uprightness, and no ductility. The push and pull force of the coiled pipe can be increased between the pipes (there are also coiled pipes made of other materials to choose from)
• The product includes a reel and a high-grade aluminum portable box, which is convenient for storage and has good product protection.
• Suitable for pipeline inspection and maintenance of pipelines, sewage pipes, air ducts, gas pipes, oil pipelines, and drainage pipes

Product specifications:

※Pipeline inspection cameras are custom-made. If you need other lengths, please call or email us.

Explore the mysteries of the world of mechanical parts! Economical industrial endoscope + 8-inch screen brings you an excellent visual experience. With the excellent performance of industrial endoscopes, you can easily carry out automobile and motorcycle maintenance inspections, mechanical parts inspection and repair work. Whether in a small space or a complex mechanical environment, the economical industrial endoscope + 8-inch screen can provide clear and precise images to help you complete various challenges.

In the past, it was necessary to judge whether the drilled hole was smooth and smooth? Are the pipe welds perfect? Does the car engine have carbon deposits? Is there something wrong inside the tool machine? Is the mold scratched? Are the drilled holes in the mold smooth and without cracks? Are there foreign objects, impurities or dirt present? In the past, we could only guess or use destructive methods to deal with issues such as whether the circuit board is broken or not, such as sawing, cutting or knocking, which is both time-consuming and labor-intensive.

Now with the economical industrial endoscope + 8-inch screen, you can quickly observe and inspect without damaging the object, making your work more efficient and helping you save time and manpower.

The economical industrial endoscope has CE/FCC certification and is equipped with an 8-inch screen and is very convenient to use. It is suitable for a variety of purposes, such as precision instrument testing, mold inspection, mechanical maintenance, quality control inspection and other fields.

feature of product:

• 300,000 pixels (real pixels, not ordinary simulated pixels), ultra-clear images

• 5.5mm CMOS lens: You can easily enter a small working space to inspect the situation, making maintenance easier.
• Dust-proof and water-repellent lens: The entire lens is dust-proof and waterproof up to IP66, so it can be used in any harsh environment.
• Internal view cobra tube length: with 1M length coil tube, it is more convenient to extend the field of view
• CE/FCC certification
• Made in Taiwan

Product Usage:

• Home repair: decoration, water and electricity pipes, air conditioning, etc.
• Equipment inspection and maintenance: printers, molds, lathes, excavators, bulldozers and large machinery, etc.

• Quality control: incoming material inspection, finished product shipping inspection
• Factory production line: inspection of process items, confirmation of wafer process, repair of defective circuit boards
• Engineering/R&D: Engineering record reports, problem analysis record reports, communication with customer products

Product specifications:

Remark:

1. Economical industrial endoscope + 8-inch screen cannot record video or take photos.

2. The economical industrial endoscope is not portable and needs to be plugged in for use.

Improve your mechanical parts inspection and repair efficiency! PST-2416 economical industrial endoscope (endoscope detection tube, snake tube endoscope) is an ideal choice for automobile and motorcycle maintenance inspection and mechanical parts inspection, and is suitable for use in connection with video equipment. Economical industrial endoscopes enable precise visual inspection with ease, improving diagnostic accuracy and operational convenience. Whether it is for routine maintenance or professional inspection, the PST-2416 economical industrial endoscope can meet your needs.

In the past, were the drilled holes round and flat? Are the pipe welding rod points complete? Does the car engine have carbon deposits? Is there something wrong inside the tool machine? Where are the pipes clogged or leaking? Are there any scratches on the mold? Are the drilled holes in the mold rounded or have cracks? Are there foreign objects, impurities and dirt? Problems such as circuit board breakage, etc. can only be solved by guessing or simply sawing/cutting/knocking them open, which is time-consuming and labor-intensive. The PST-2416 economical industrial endoscope can quickly observe and inspect objects without damaging them, making your work more efficient.

The PST-2416 economical industrial endoscope lens is a 300,000-pixel (real pixels, not ordinary simulated pixels) 5.5mm lens with ultra-clear images.

PST-2416 economical industrial endoscope has CE/FCC certification and can be easily connected to any AV-In screen. It is super convenient to use and is suitable for evidence collection, water, electricity, pipeline and air conditioning maintenance, automobile maintenance, pipeline detection, pipeline engineering, Water leakage inspection, precision instrument inspection, mold inspection, ecological flora and fauna observation and mechanical maintenance, quality control inspection, etc. After connecting with a DV camera, it becomes the best tool for ecological photography.

feature of product:

• 300,000 pixels (real pixels, not ordinary simulated pixels), ultra-clear images

• 5.5mm CMOS lens: You can easily enter a small working space to inspect the situation, making maintenance easier.
• Dust-proof and water-repellent lens: The entire lens is dust-proof and waterproof up to IP66, so it can be used in any harsh environment.
• Internal view cobra tube length: with 1M length coil tube, it is more convenient to extend the field of view
• CE/FCC certification
• Made in Taiwan

Product Usage:

• Home repair: decoration, water and electricity pipes, air conditioning, etc.
• Research observation: water flow observation, ecological observation of animals and plants, etc.
• Fire protection and environmental protection: search and rescue and evidence collection
• Police use: search, attack, etc.
• Transportation maintenance: maintenance and inspection of automobiles, motorcycles, airplanes, ships, etc.
• Equipment inspection and maintenance: printers, molds, lathes, excavators, bulldozers and large machinery, etc.
• Quality control: incoming material inspection, finished product shipping inspection
• Factory production line: inspection of process items, confirmation of wafer process, repair of defective circuit boards
• Engineering/R&D: Engineering record reports, problem analysis record reports, communication with customer products

Product specifications:

Remark:

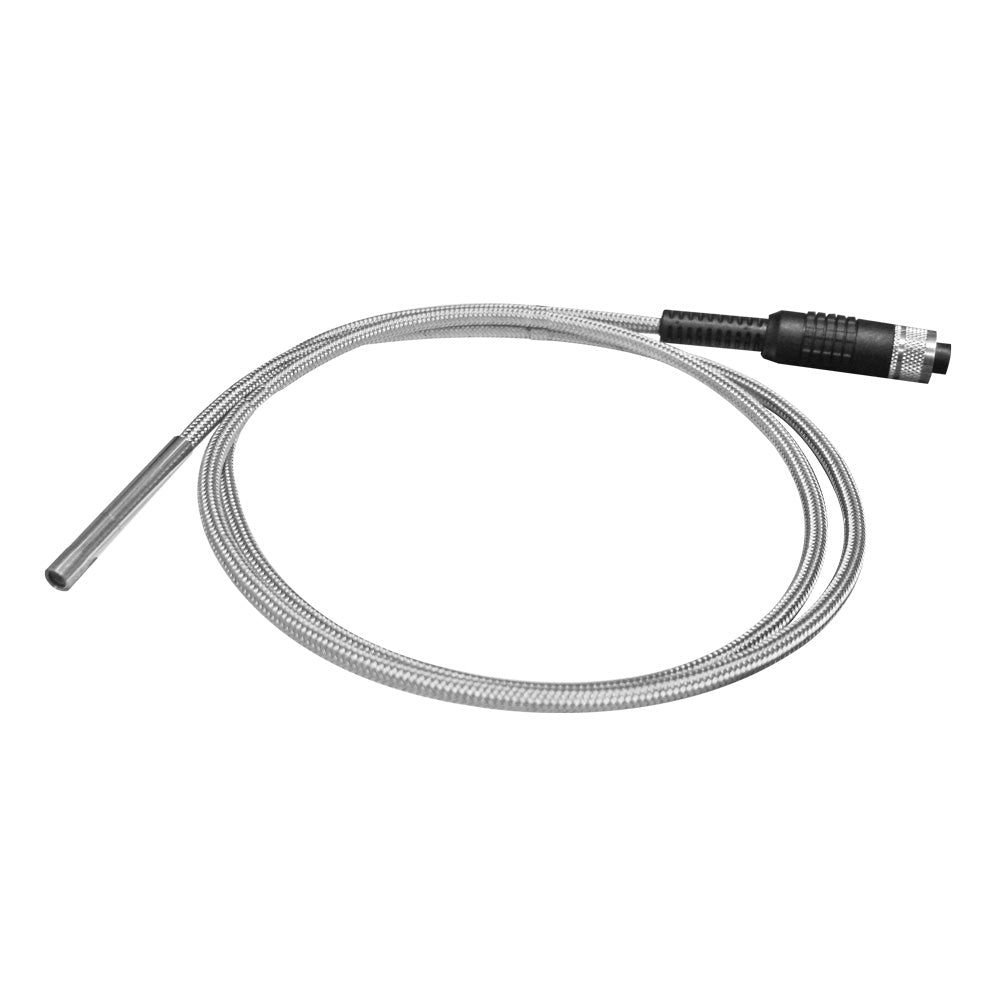

1. The economical industrial endoscope only sells the coil tube and does not include any screen.
2. Whether the economical industrial endoscope can record videos and take photos depends on whether the device you connect has video and photo functions. If it does not have functions such as taking pictures and recording videos, it can only be used for viewing. If you connect it to equipment such as a DV camera or video recorder, the machine itself has the function of taking pictures or recording videos, so you can also take pictures or record videos after using the endoscope.
3. The economical industrial endoscope is not portable and needs to be plugged in for use.

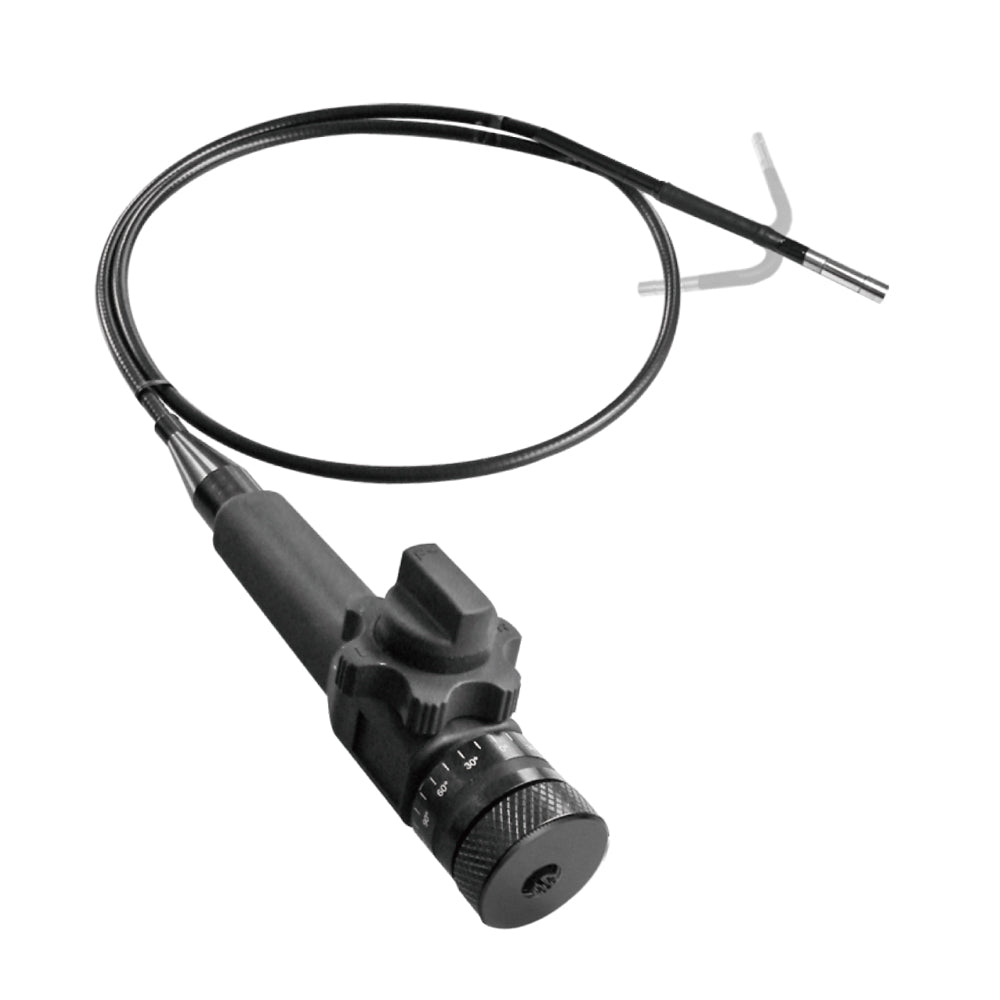

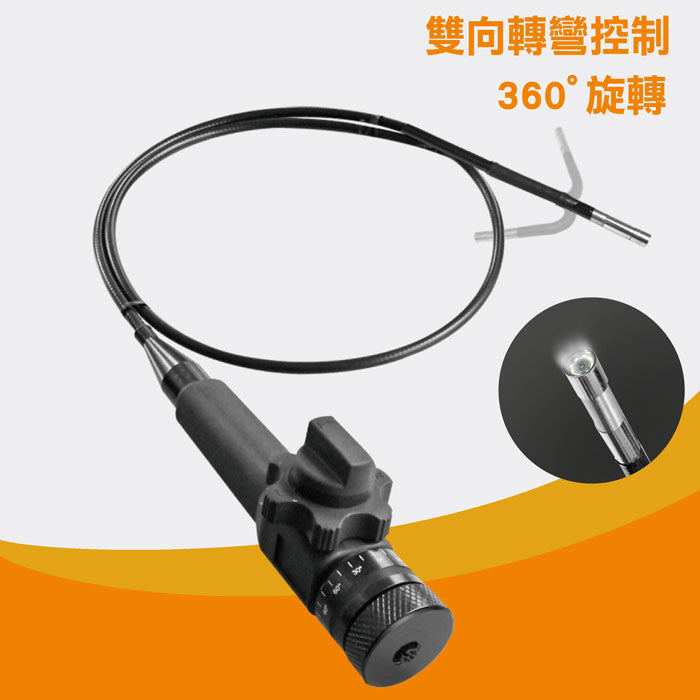

High-quality swivel-endoscope lens snakes designed for a wide range of applications. The endoscope lens has the function of bidirectional swinging head, which can easily enter the narrow space and provide clear images and accurate detection results. Whether you need to inspect pipes, air conditioning, auto repair, mechanical repair or perform home inspections, cylinder repairs and air conditioning inspections, the steerable industrial endoscope lens snake can meet your needs. The steerable industrial endoscope lens snake combines advanced technology and reliable performance to provide efficient inspection and maintenance solutions. The steerable industrial endoscope lens snake can be matched with the appropriate endoscope host product to improve your work efficiency and achieve better inspection results.

Product Features:

• The endoscope lens snake tube can be used with the relevant industrial endoscope host of our company.

• 300,000 pixels, ultra-clear images
• Can turn left/right up to 270°
• The coil can rotate 360°
• You can choose near focus, far focus, infrared lens
• Ultra-high brightness LED light, with adjustable brightness, even dark corners are clearly displayed (if it is an infrared lens, it is invisible light)
• IP67 waterproof design
• The endoscope is equipped with a 1M long hose, which can be purchased up to 2M long

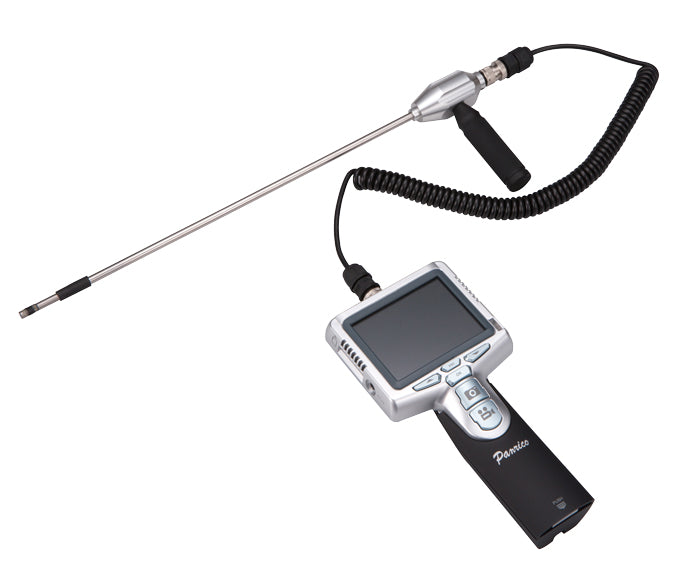

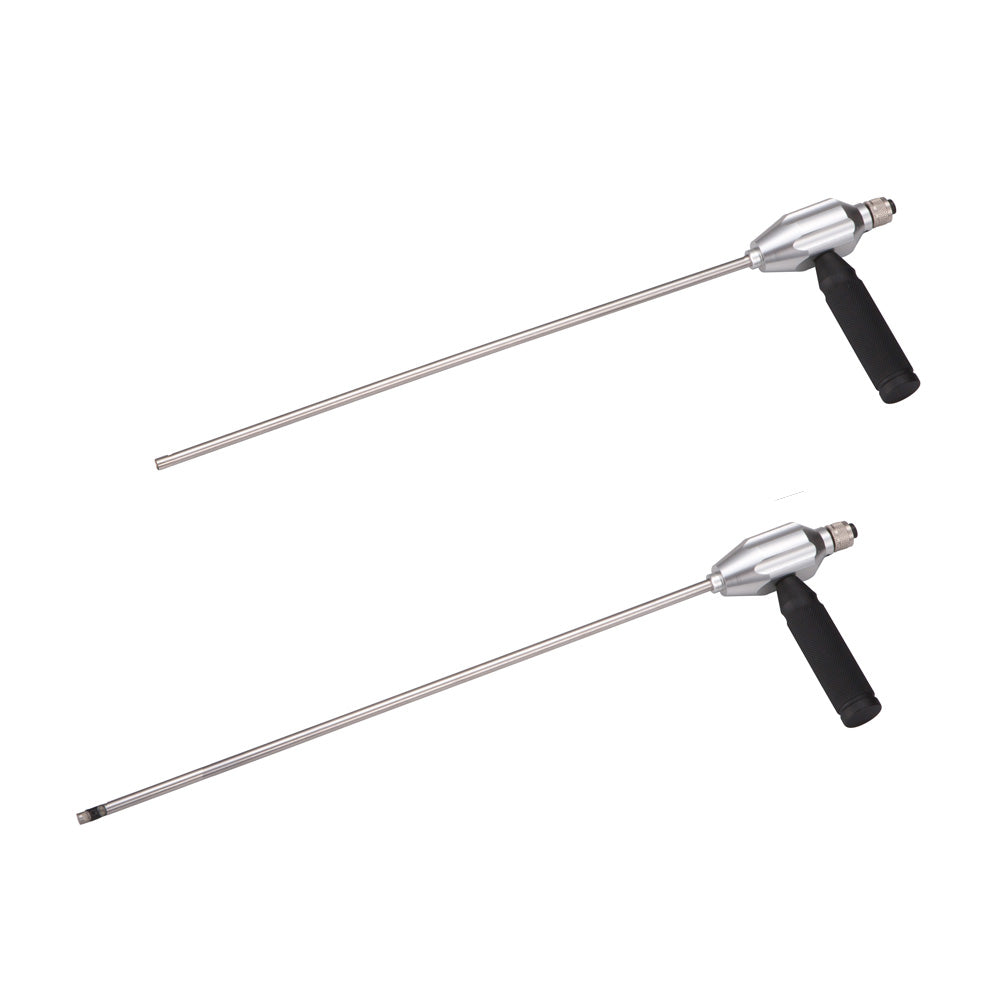

Perform industrial inspection work with ease! Rigid industrial endoscopes (gun-type industrial endoscopes, gun-type rigid tube endoscopes, industrial inspection endoscopes) made in Taiwan are specially designed for industrial inspection, whether it is mechanical internal or parts inspection, gun-type hard tube industrial Both endoscopes provide excellent visual resolution and operational flexibility.

Rigid industrial endoscopes are rugged and durable and can meet the challenges of various industrial environments. Whether it is a small space or equipment with complex structures, rigid industrial endoscopes can easily handle it and help you accurately detect and diagnose problems.

The 5.5mm diameter lens of the rigid industrial endoscope can be made into 3 modes: 0°, 90° side-viewing close-range and 90° side-viewing extremely close-range. 0° is suitable for viewing objects in front, and 90° side-viewing is suitable for Observe objects at close range.

feature of product:

• Replaces the old hard-tube industrial endoscope to visually measure objects.
• Gun-type rigid tube endoscope, the test object is displayed on the screen, making it easy to interpret.
• The 5.5mm lens has a 0° viewing angle to view the front, and the viewing angle is 54°.
• 5.5mm lens 90° rigid tube endoscope, with two focal length ranges of 4mm-5mm/10mm-16mm available. The 4mm - 5mm focal length is suitable for very close objects, and the 10-16mm focal length is suitable for short-distance inspection.
• Suitable for inspection of precision machinery, automobile parts, engines or smooth inner tube objects.
• 5.5mm lens, 90° focal length, 4mm-5mm rigid tube endoscope, LED light designed with diffused light, which will not cause white exposure due to reflection from smooth objects.
• Resolution: 5.5mm lens: 300,000 pixels / 3.9mm lens: 160,000 pixels.
• Dustproof and water-proof lens.
• The gun-type grip is detachable.

Scope of application:

• Equipment inspection and maintenance: bearings, pipelines, printers, molds, lathes

• Quality control: incoming material inspection, finished product shipping inspection
• Factory production line: inspection of process items, confirmation of wafer process, repair of defective circuit boards
• Engineering/R&D: Engineering record reports, problem analysis record reports, communication with customer products

Product specifications:

Note: If you need rigid industrial endoscopes, please call or email us.

The industrial endoscope is made of Teflon stainless steel wire braided coiled tube. The 5.5mm diameter lens image has 300,000 pixels and the image is super clear. Contains an adjustable light source that allows you to view in the dark, and is used for evidence collection, water, electricity, pipeline and air conditioning maintenance, automobile maintenance, pipeline detection, mold inspection, ecological flora and fauna observation, transportation/machinery maintenance, etc. kind of use.

The Teflon stainless steel wire braided tube for industrial endoscopes contains Teflon and can be used in weak acid and weak alkali environments. The stainless steel wire braided coil tube is scratch-resistant and wear-resistant.

feature of product:

• 300,000-pixel 5.5mm CMOS lens, extremely clear picture quality
• The head is equipped with ultra-high brightness LED light, the brightness can be adjusted, and the dark corners can be clearly displayed.
• Able to view object status in a small workspace
• IP67 dustproof and waterproof lens and coil

Scope of application:

• Home: Home security, pest control, locksmith, electrician
• Transportation maintenance: maintenance and inspection of automobiles, motorcycles, airplanes, ships, etc.
• Equipment inspection and maintenance: bearings, pipelines, printers, molds, lathes, excavators, bulldozers and large machinery, etc.
• Quality control: incoming material inspection, finished product shipping inspection
• Factory production line: inspection of process items, confirmation of wafer process, repair of defective circuit boards
• Engineering/R&D: Engineering record reports, problem analysis record reports, communication with customer products

Product specifications:

Note: If you need Teflon stainless steel wire braided coils, please call or email us.

The NKH1 infrared thermal imaging camera (infrared thermal imaging camera, thermal imager, thermal imaging camera, thermal imaging camera, handheld thermal imaging camera, industrial thermal imaging camera) designed and manufactured in Taiwan uses the Thermopile thermopile thermal sensor imported from Germany. Detector to convert temperature difference and electrical energy into each other . When a temperature difference occurs on both sides of the thermopile, an electric current is generated, which can be used to measure temperature. Structurally, it consists of multiple thermocouples. When using a thermopile to measure temperature, it can overcome the shortcoming that the potential difference generated by a single thermocouple is too small and difficult to measure. Compared with traditional infrared thermal imaging cameras, it can provide clearer thermal sensing images with higher accuracy.

Infrared thermal imaging cameras can detect invisible heat energy and can see and measure subtle changes in temperature. Due to temperature differences, different colors appear. Through the image, the entire temperature surface can be quickly detected and the high and low temperatures can be identified. If there is a temperature abnormality, it may be a fault.

Product Features:

• Infrared thermal imaging camera, thermal resolution 80 x 64 pixels
• Thermal imager viewing angle 39° x 31°
• High temperature alarm mode
• High/low temperature tracking
• Ambient humidity display
• Can take pictures while recording
• Can be connected to a laptop or computer for simultaneous display
• 3.5-inch screen, clear images
• Auto focus mode
• IP54 waterproof rating
• Automatic/manual power off
• Rechargeable lithium battery, fully charged, can be used continuously for about 4 hours
• Won the Gold Medal and Double Gold Medal of the British Bis Invention Award
• Made in Taiwan

When using the NKH1 infrared thermal imaging camera, you should pay attention to the temperature difference between the ambient temperature and the object being detected to avoid the situation where the temperature difference is too small to accurately identify . During operation, it is recommended to adjust the upper and lower temperature limits to obtain a clearer thermal image and higher accuracy.

Infrared thermal imager
Infrared thermal imaging cameras can detect heat energy that is invisible to the human eye, helping observers see and accurately measure small changes in temperature. By displaying the colors of different temperature differences, it can quickly present the entire temperature distribution in the image. Such images can quickly identify high and low temperature areas, thereby revealing potential temperature anomalies and helping to quickly detect possible faults.

German thermal sensor lens designed and manufactured in Taiwan
The NKH1-S see-through thermal imaging camera for teaching is manufactured using German thermal sensing lenses and is characterized by being equipped with multiple thermocouples. Compared with traditional infrared thermal imaging cameras, this design can provide clearer and more accurate thermal sensing images. The combination of multiple thermocouples greatly improves its accuracy and provides a more reliable measurement and observation experience.

The purpose of using infrared fluoroscopy
This see-through thermal imaging camera uses the penetrating properties of infrared rays to explore and analyze information that cannot be discerned by the naked eye. Equipped with invisible light 940nm infrared and see-through lenses, it can clearly observe nocturnal insects and small creatures. This function is very suitable for school teaching, providing opportunities for field observation and exploration, and stimulating students' curiosity and interest in learning about the natural world.

necessary elements for perspective
The characteristics of infrared make it possible to see through special black plastic or glass products. The see-through lens is installed on the infrared thermal imaging camera, and combined with invisible infrared irradiation and a completely black glass or plastic cover, objects can be easily seen through. This combination can provide in-depth observation of specific materials, allowing users to glimpse internal structures or subtle changes that are invisible to the naked eye.

FLIR E5 Pro is a professional series of infrared thermal imaging cameras equipped with FLIR Ignite cloud, with an infrared thermal imaging resolution of 160 x 120 pixels and an image refresh rate of 9 Hz.

The FLIR E5 Pro thermal camera works more efficiently than ever in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Find and diagnose problems quickly with 160×120 thermal imaging resolution (19,200 pixels) and vivid thermal images powered by FLIR's patented MSX® (Multispectral Dynamic Imaging) enhancement technology. The E5 Pro thermal imaging camera is equipped with a 3.5-inch 640×480 touch screen, simplifying your workflow. You can edit and organize your photos, add detailed annotations, and upload directly to the FLIR Ignite cloud for easy access from any device. Share images with clients and create quick reports directly in FLIR Ignite, or advanced reports in FLIR Thermal Studio.

feature of product:

High efficiency inspection
Use FLIR Ignite cloud service to edit, store, organize and share images, add detailed annotations and easily access them from any device.

Find problems quickly
FLIR's patented MSX® (Multispectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly identify problem areas.

touchscreen
3.5-inch 640×480 pixel touch screen, one-touch level/span area adjustment function replaces manual adjustment to improve detection efficiency.

Share and report
Share footage instantly and create quick reports in FLIR Ignite on any device, or create advanced reports with FLIR Thermal Studio on your PC.

Applications:
- Industrial inspection of electrical and mechanical equipment
-Condition monitoring and preventive maintenance before equipment failure
- Building inspection to ensure energy efficiency

If you have any needs for Flir E6 Pro or E8 Pro infrared thermal imaging cameras, please feel free to contact us~

※Please note:

Thermal imaging cameras can only see the surface of objects and cannot see through walls .

Thermal imaging camera converts the thermal radiation of an object into a light signal for imaging. By observing the temperature difference on the surface of the object, it is displayed on the screen , providing signs invisible to the naked eye for the operator to make judgments. If the temperature difference is not too small, it cannot be clearly displayed. .

Except for thermal imaging cameras controlled by the military, which can see through, ordinary thermal imaging cameras cannot penetrate walls or objects.

The FLIR TG267 thermal imaging camera takes you beyond the limitations of single-spot infrared thermometers, allowing you to see hot and cold spots that could indicate serious problems.

Everything from electrical connections to mechanical failures can be checked quickly and accurately, reducing diagnostic time while streamlining reporting and long-term monitoring of equipment and systems throughout a facility. Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) improves image clarity by imprinting visual scene details on the thermal image, providing additional context to help you accurately locate and troubleshoot potential faults.

Record images to monitor maintenance history and assure your customers that issues have been resolved. With a simple user interface, Bluetooth connectivity, storage for up to 50,000 images, and a rechargeable lithium-ion battery, the FLIR TG267 thermal imaging camera is ready to use right away.

Product Features:

• Thermal image capture resolution 160 x 120 pixels
• Measurable temperature - 25 °C ~ 380 °C
• Laser bullseye and center point precision aiming dual function to determine the exact area to be measured
• Store up to 50,000 images
• Built-in LED light, auxiliary lighting in dark places
• Photo transfer can be done via USB or Bluetooth connection

※Please note:

Thermal imagers can only see the surface of objects and cannot see through walls .

Thermal imagers convert thermal radiation from objects into light signals and form images. They observe temperature differences on the surface of objects and display them on the screen , providing signs that are invisible to the naked eye for operators to make judgments. If the temperature difference is not too small, it cannot be clearly displayed .

Except for thermal imagers approved by the military, ordinary thermal imagers cannot penetrate walls or objects.

The FLIR C5 pocket thermal camera is the tool of choice for building inspections, facility maintenance, HVAC/R, electrical repair, and other troubleshooting applications. Find problems faster with a 160x120 (19,200 pixel) thermal imager and a 5 megapixel visible light camera.

MSX® multi-spectral dynamic imaging can immediately identify the location of temperature issues, making it easy to identify hidden problems.

The 3.5-inch touch screen is easy to use and allows you to quickly check and record maintenance status. The P54 housing provides a high level of dust and water resistance and is designed to withstand a 2M drop. It has a built-in LED flashlight to view dark and hard-to-reach areas.

Pocket-sized design, easy to carry. With the FLIR C5, you can always find heat spots, air leaks, plumbing problems, and more.

The FLIR MR176 imaging hygrometer adopts IGM's leading infrared thermal imaging technology and has a built-in thermal imaging lens. It is a fully functional tool that can accurately measure moisture locations . With IGM technology, it can quickly scan and confirm moisture problems, guiding you to quickly locate them so you can easily measure and analyze data. Combining probeless sensors with external probes provides you with non-destructive and contact measurements, greatly improving application possibilities. In addition, this product is equipped with field-replaceable temperature and relative humidity sensors and has an automatic calculation function for environmental readings, making it easier for you to use and obtain accurate measurement values ​​faster.

• The 80x60 resolution (4,800 pixels) Lepton® thermal imager movement is equipped with IGM technology to visually detect potential moisture problems through color display.
• Customize thermal imaging: select integrated measurements (humidity, temperature, relative humidity, dew point, vapor pressure, mixing ratio); 4 color silk swatches (iron, rainbow, cool and off-white modes); image lock setting to prevent Excessively high temperatures and extremely low temperatures interfering with the image during scanning issues
• Laser and crosshair settings allow you to easily detect overheating and identify potential moisture issues
• Precise measurement: The field-replaceable temperature/relative humidity sensor allows you to remove and replace it when needed, shortening downtime and keeping your work smooth.
• As the user moves from one measurement point to another, the progressive environmental stability indicator eliminates response time errors and notifies when the relative humidity value reaches a stable state.
• The integrated pinless temperature measurement function allows you to measure quickly, and the additional external probe provides you with more extension options.
• Durable, easy to carry, and easy to understand user interface design
• Share document data and images via USB
• Free FLIR Tools PC software for quick report creation

 Product specifications:

High quality images and performance
Capture high-quality thermal images, easily identify targets and identify problems using FLIR MSX, VividIR and 160 × 120 (19,200 pixels) thermal resolution.

Improve the way you work
FLIR ONE Edge Pro features FLIR Ignite cloud services, compatibility with FLIR Thermal Studio, and step-by-step guidance for FLIR-specific applications to help you increase efficiency and expand your thermal imaging inspection program.

professional tools
With up to 2.5 hours of battery life and fast charging, FLIR ONE Edge Pro is always ready when you need it. This rugged camera has an IP54 rating and has passed a 2 meter drop test.

Detailed images comparable to professional thermal imaging cameras
- 256 x 192 pixels, exquisite picture quality experience
- High temperature can reach 550 ℃, covering a wide range of applications
- 50 mk (0.05 ℃) thermal sensitivity for fine discrimination
- ±2% or ±2°C accuracy for reliable results
- 25 Hz screen update rate, smooth video without lag
- More than 10 standard color palettes and customized color palettes to achieve a variety of personalized images

Powerful full temperature range analysis function
- Real-time capture of high and low temperatures without missing any details
- Emissivity is adjustable to cope with different materials
- Comprehensive temperature analysis of points, lines and surfaces, professional-grade thermal imaging software
- Instant temperature alarm, timely response and processing
- Automatic interval shooting, unattended
- Comparative viewing, positioning, comparison and archiving of infrared and visible light images

Share real-time images and communicate without barriers
-Real -time sharing and management of pictures and videos for fast and efficient communication
- Convenient picture notes, smooth communication and barrier-free
- Automatically generate infrared detection reports, reporting, keeping files and sharing easily (TC01B only)

Really compact and portable, you can get started in one second
-Compact design weighing as little as 22 g, perfectly matching the size of mobile phones
- Each iSee™ is made of high-quality aviation aluminum, combined with unique surface treatment and laser etching process
- 1M drop, IP56 (TC01B)/IP54 (TC01A) protection level, upholding Fluke's durable quality
- Optimized Fluke iSee™ application interface and menu design, enjoy a professional operating experience and easily implement all functions

2-in-1 wall detector + laser rangefinder, dual-use in one ~

Wall detector avoids wires and steel bars, so you don’t have to worry about drilling the wrong holes during decoration

Laser rangefinder function makes measuring dimensions more convenient

Warranty period: 6 months

• Ultra-thin AC hook meter (current hook meter/hook meter/hook meter), using the average rectification method to measure the fundamental waveform component
• -25°C ~ 60°C operating temperature range
• Connect the CT6280 sensitive sensor to measure up to 4199A thick or paired wires
• 1000A average value, fixture diameter: 33mm
• Weighing 100g, the body is only 16mm thick, light and easy to carry
• Lightweight and thin body design, smoother operation in narrow spaces
• HIOKI Japan original company goods

Related components:
Main unit x 1, test lead L9208 × 1, button-type lithium battery (CR2032) × 1, instruction manual × 1

• Compact and lightweight, AC/DC dual-use hook-up meter that can be operated with one hand
• Suitable for measurement of UPS emergency backup batteries and electric vehicle motors
• The thin and light body can be used easily in small working environments.
• It can measure high current UPS batteries and motorcycle motors.
• Although it is a small clamp meter, it is equipped with voltage, resistance, and continuity check functions.
• Original company goods, original factory warranty of 3 years

Product specifications:

Japan HIOKI CM3289 ultra-thin clamp meter is a high-precision AC clamp meter designed for measuring AC current. Its ultra-thin design makes it easier to operate and is especially suitable for use in narrow spaces. The CM3289 not only provides accurate current measurement, but also has stable performance and durability, making it suitable for professional electricians and technicians to perform various electrical measurement tasks. The original company's products guarantee quality, giving users greater peace of mind. This hook meter also has a simple and easy-to-read display interface, which can be efficiently completed for both daily maintenance and fault diagnosis, making it an indispensable member of the electrician's tool box.

Product Features:

• Japan HIOKI CM3289 ultra-thin hook meter (current hook meter/hook meter/hook meter/electricity meter) has a new appearance upgrade! The sensing part is more slender, allowing you to clamp it more easily for measurement
• Operating temperature range -25℃～65℃
• Real effective measurements including harmonics
• With CT6280, it can measure 4199A high current of thick cables, dual cables, etc.
• AC Current:
  42.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, effective value), basic accuracy: ±1.5 % rdg. ±5 dgt.
• DC Voltage:
  420.0 m～600 V, 5 ranges, basic accuracy: ±1.0% rdg. ±3 dgt.
• AC Voltage:
  4.200～600 V, 4 ranges (45～500 Hz, effective value), basic accuracy: ±1.8 % rdg. ±7 dgt.
• Measurable conductor diameter: φ 33 mm or less

Specifications:

• Automatically determine AC/DC
• The open circuit voltage maintenance of solar panels can be measured up to DC2000V (must be equipped with the optional DC high-voltage probe P2000; the host can only measure up to DC1000V)
• Simultaneously displays the true RMS value and waveform peak value of the starting current (INRUSH)
• Dustproof and waterproof performance: IP54
• Supports wirelessization ~ transmit measured values ​​to smartphones or tablets (when wireless adapter Z3210 is installed)
• Wirelessly transmit measurement data directly to Excel® sheets (when wireless adapter Z3210 is installed)
• Harmonic analysis from the 1st to the 30th order can be performed through GENNECT Cross (when wireless adapter Z3210 is installed)

• Safer card type multimeter
• Lightweight design, only 9.5mm thick and 60g heavy
• Maximum 4199 displayed
• The resistance/continuity range has overvoltage protection function below AC 500V.
• It has an automatic power saving function, which will automatically shut down the machine if you forget to turn it off.
• The front end of the probe is 15mm long and made of gold-plated material, which can penetrate deep into the socket.
• The watch stick can also be conveniently stored in the carrying case
• Original company goods, original factory warranty of 3 years

Sensitivity adjustment function with LED lighting

• During the power test, the red light is on and accompanied by a buzzer.
• Lightweight, pen-like design
• Maximum sensitivity adjustment function band (40~80V), conduct electrical testing with the most appropriate sensitivity
• With LED lighting
• Operating voltage range: AC 40 V ~ 600 V
• Power display shows battery consumption. If the green light on the front indicates that the battery voltage is OK
• Increased safety level, CAT IV 600V
• Thread the lanyard through the lanyard hole to prevent it from falling
• Original company goods, original factory warranty of 3 years

Supported measuring instruments (including products expected to be supported):

Measuring instruments that support this function will be added in sequence:

• AC leakage current clamp meter CM4001
• AC leakage current clamp meter CM4002
• Insulation high resistance meter IR4057-50
• Ground resistance meter FT6031-50
• AC leakage current clamp meter CM4003
• Non-contact voltage/phase sequence table PD3259-50
• Battery tester BT3554-50
• Insulation high resistance meter IR4057-50
• AC/DC hookup table CM4371-50
• AC/DC hookup table CM4373-50

Simple! Just connect the Z3210 to a HIOKI measuring instrument that supports this function!

HIOKI measuring instruments that support this function can be made wireless by simply making a connection. Transfer measurements to your tablet or smartphone.

Origin:
Japan
