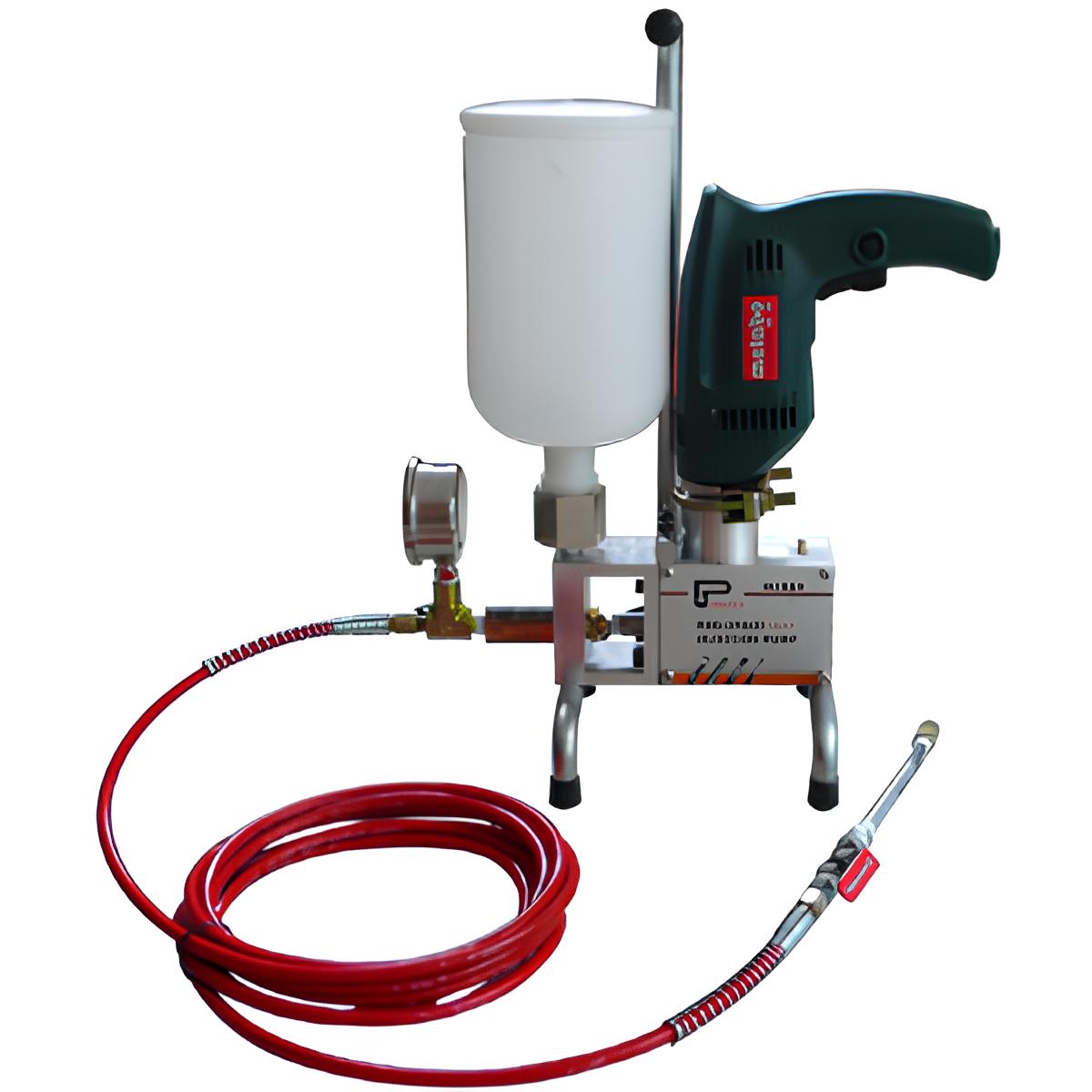

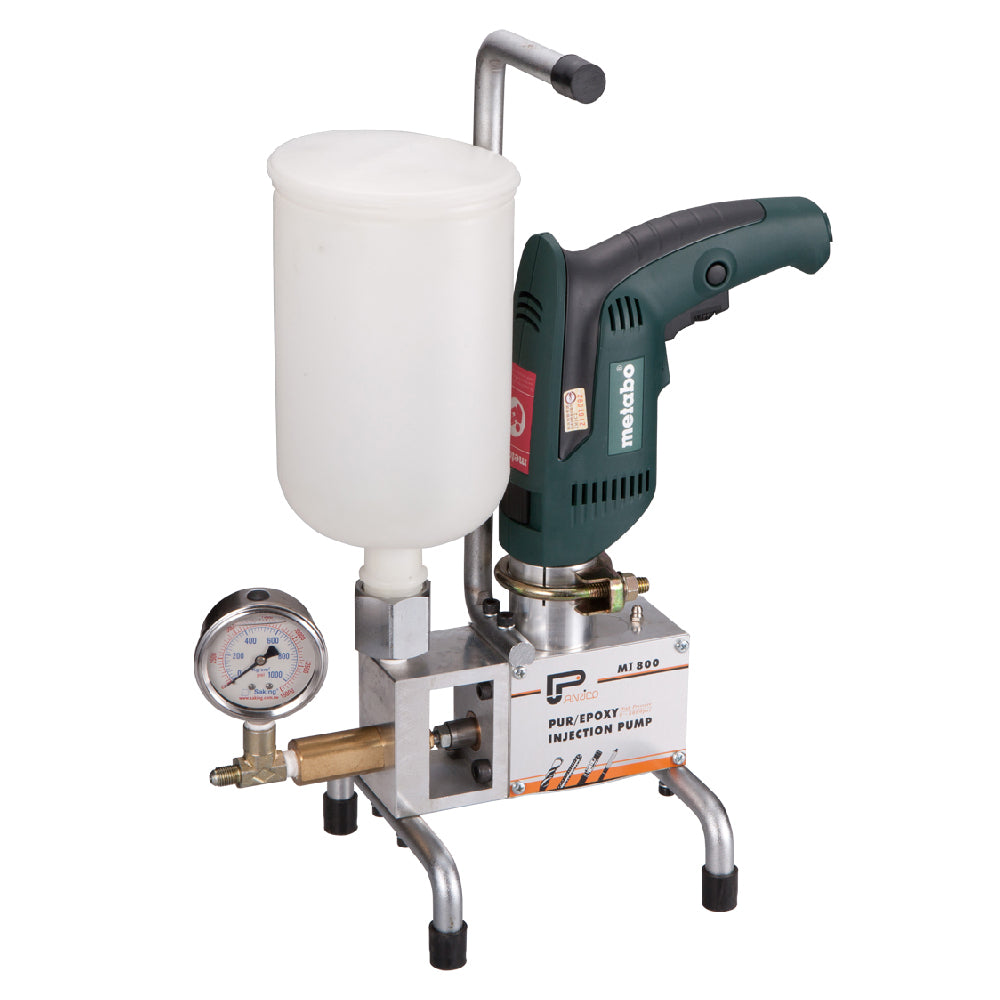

Portable electric high-pressure grouting machine high-pressure grouting machine waterproof and leak-proofing made in Taiwan (BEM-MI800III)

feature of product:

• Portable electric high-pressure grouting machine (high-pressure grouting machine, high-pressure grouting machine) made in Taiwan
• Fast construction: the working pressure can be increased to 5000PSI in a few seconds, and the filling time is faster than other models.
• Lightweight to carry: The main body weighs only 7. 5 kilograms, which is effortless to carry and easy to move.
• Easy maintenance: It can be repaired without special training and avoids downtime due to sending the machine for repair.
• Easy to operate and effective in stopping leaks: the agent can be effectively poured into tiny cracks to effectively seal leaks.
• Affordable and reasonably priced: The machine body has few consumable parts and a low unit price, which is great value for money and can reduce costs.

Scope of application:

• Plugging and sealing construction of cracks, expansion joints, construction joints and structural joints in various buildings and underground concrete projects.
• Drilling protection wall plugging and reinforcement in geological drilling engineering.
• Grouting of reservoir dams in water conservancy and hydropower projects, sealing and anti-seepage of cracks in water conveyance tunnels, and anti-seepage reinforcement of concrete cracks in dam bodies.
• Water leakage from subways, tunnels, culverts, sewage treatment tanks, concrete cracks, and water leakage can be plugged.
• Water leaks from basements, underground garages, underground passages, and concrete cracks, and water leaks must be plugged.
• Cracks in roof concrete slabs, wall pipes, corners, water leakage, and water leakage are blocked.
• Cracks in concrete structures, beams, columns, and plate structures require high-pressure injection of epoxy resin.

Product specifications:

• Weight: 7.5 KG
• Maximum output pressure: 11000 PSI
• Start again: <7500 PSI
• High pressure pipe safety range: <14000 PSI
• Safety range of switch valve: <18000 PSI
• Output flow: 0.74 liters/minute
• Power supply (Taiwan): 110V

Equipped with:

• body
• 5M high pressure pipe
• On-off valve complete set (including butter head)
• Metabo SBE560 electric drill (minimum wattage: 560 watts)

How to operate:

one. Precautions before use:

• This machine uses 110V as the correct voltage and cannot use 220V voltage.
• The lubricating oil filling hole should be inspected before use. If the lubricating oil in the spindle chamber is insufficient, the specified lubricating oil must be added.
• Before operating the machine, the axis and tie rods should be carefully inspected to make sure there are no obstructions before use.
• After each filling, it should be cleaned twice with a clean special detergent.

two. Machine cleaning steps:

• After dispensing the medicine, pour the remaining medicine back into the tube, then pour in the special cleaning agent (about 600cc). First, pump out all the medicine in the feeding tube, make sure there is no medicine in the feeding tube, pour in the special cleaning agent (about 600cc) again, and Switch the valve and return it to the funnel for circulation.
• The cycle cleaning time is Repeat this action twice for 3-5 minutes. After cleaning, pour 50cc of clean engine oil and turn on the switch to allow the oil to lubricate the axis.
• If there is no engine oil on site, please take out the spring and steel balls, clean them and store them properly to avoid damaging the piston during next use.

Products used together with:

• Water-stopping agent-Hydrophilic PU foaming water-stopping agent/Hydrophilic crack water-stopping injection C-700 (single dose type)
• Water-stopping agent - Hydrophobic PU foaming water-stopping agent/Hydrophobic crack water-stopping injection C-800 (single dose type)
• PU foaming and epoxy resin cleaning agent
