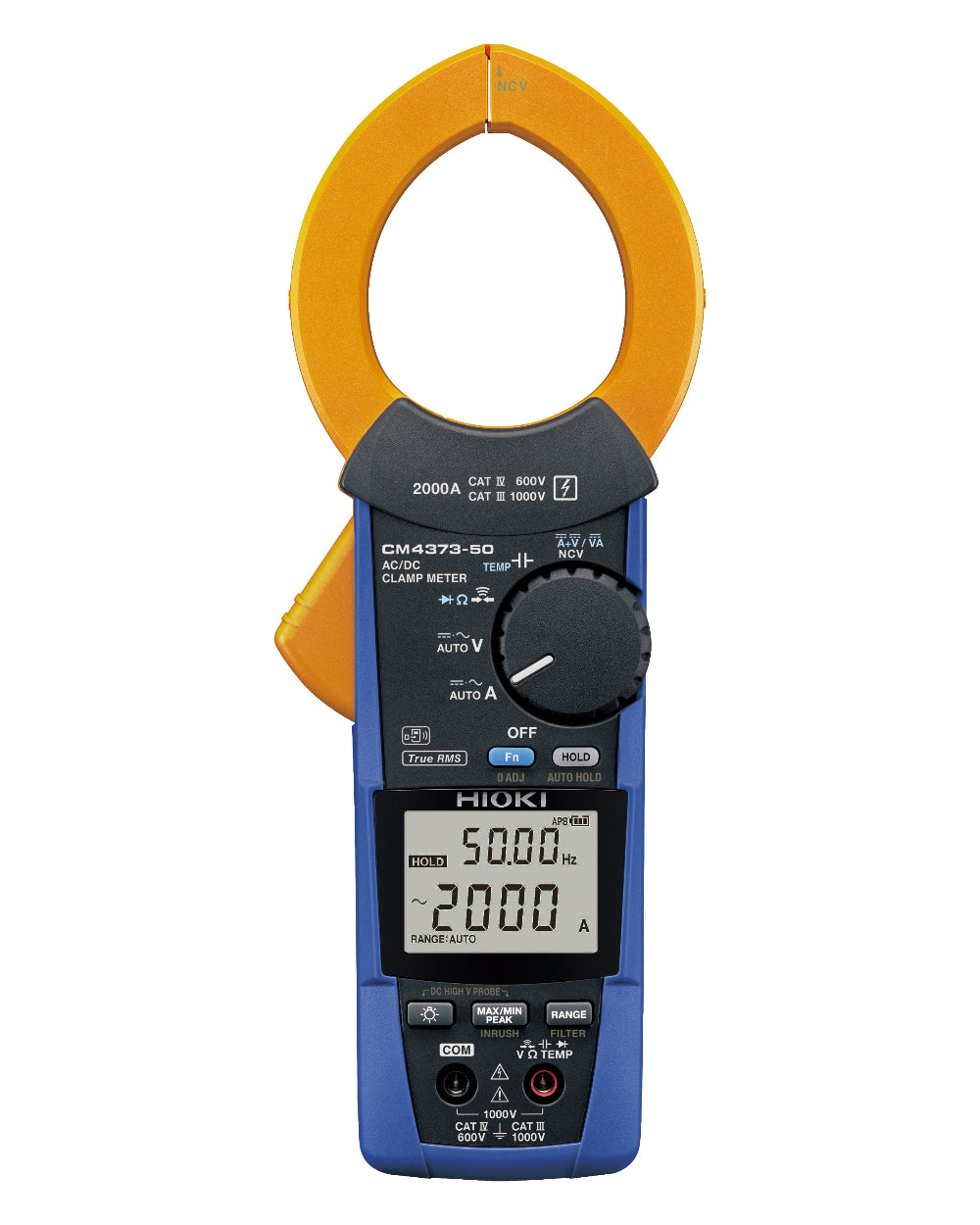

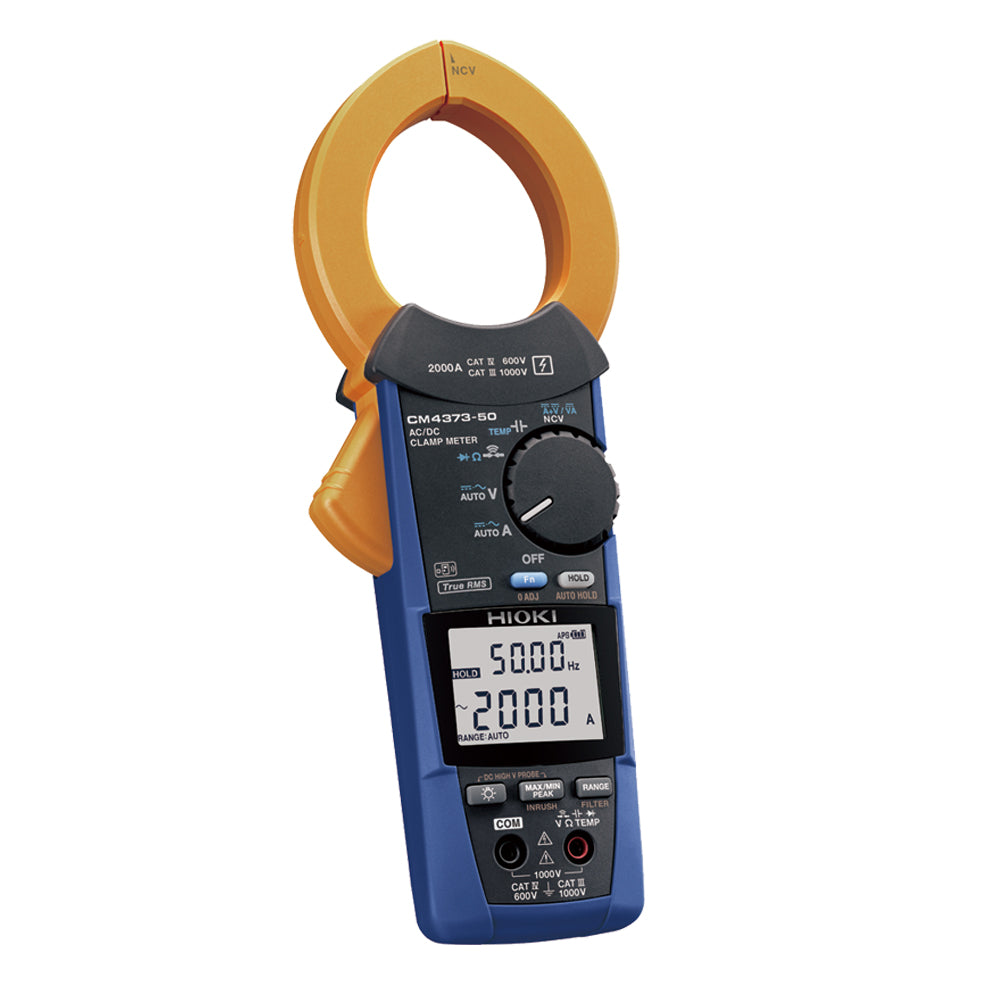

Japan HIOKI CM4373-50 AC and DC hook meter original company goods (FKH4373-50)

Japan HIOKI CM4373-50 AC and DC hook meter original company goods (FKH4373-50)

NT$12,950
NT$12,950
Sale Sold out
Taxes included. Shipping calculated at checkout.

Equipped with high security + high performance DMM

AC/DC hookup meter 2000 A

  • Automatically determine AC/DC
  • The open circuit voltage maintenance of solar panels can be measured up to DC2000V (must be equipped with the optional DC high-voltage probe P2000; the host can only measure up to DC1000V)
  • Simultaneously displays the true RMS value and waveform peak value of the starting current (INRUSH)
  • Dustproof and waterproof performance: IP54
  • Supports wirelessization ~ transmit measured values ​​to smartphones or tablets (when wireless adapter Z3210 is installed)
  • Wirelessly transmit measurement data directly to Excel® sheets (when wireless adapter Z3210 is installed)
  • Harmonic analysis from the 1st to the 30th order can be performed through GENNECT Cross (when wireless adapter Z3210 is installed)
    AC and DC hook-up meter
    AC and DC hook-up meter
    AC and DC hook-up meter
    AC and DC hook-up meter
    AC and DC hook-up meter
    AC and DC hook-up meter
    AC and DC hook-up meter
    Current measurement:
    Auto hold function:
    Maximum and minimum values. Average value, peak value:

    Display DC current and DC voltage simultaneously:
    Starting current:
    Voltage measurement:

    Continuity check:
    Electricity test:
    Wireless Adapter Z3210:
    Product specifications:
    DC current range 600.0 A/2000 A, basic accuracy: ±1.3% rdg. ±0.3 A (600A range)
    AC current range
    600.0 A/2000 A (10 Hz~1 kHz, true RMS rectification)
    Basic accuracy 45 - 66 Hz: ±1.3% rdg. ±0.3 A (at 600A)
    Crest factor
    600.0 A range: 3 or less
    2000 A range: below 2.84
    AC + DC current range
    600.0 A/2000 A (10 Hz~1 kHz, true RMS rectification)
    Basic accuracy DC, 45 - 66 Hz: ±1.3% rdg. ±1.3 A (at 600A)
    DC voltage range 600.0 mA～1000 V (600.0 V～2000 V when using P2000)
    AC voltage range
    6.000 V~1000 V, 4 ranges (15~1 kHz, true RMS rectification)
    Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.013 V (at 6V)
    AC + DC voltage range
    6.000 V~1000 V, 4 ranges, basic accuracy DC
    45 - 66 Hz: ±1.0% rdg. ±0.023 V (at 6V)
    Resistance range
    600.0 Ω~6.000 MΩ, 5 ranges
    Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
    Capacity range
    1.000 μF~1000 μF, 4 ranges
    Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
    Frequency range
    9.999 Hz~999.9 Hz, 3 ranges
    Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
    Temperature(K)
    -40.0~400.0˚C
    Accuracy: ±0.5% rdg. ±3.0 ˚C + plus temperature probe accuracy
    Electricity test Hi: AC40 V～600 V, Lo: AC80 V～600 V, 50/60 Hz
    Other functions DC power, continuity check, diode check, AC/DC automatic judgment, DC current/voltage positive/negative judgment, maximum/minimum/average/maximum peak value/minimum peak value display, low-pass filter, display Value hold, backlight, automatic power saving, beep, zero adjustment and others
    Dust and water resistance IP54 (current measurement during storage or insulated conductors)
    power supply
    AA alkaline battery (LR03) ×2
    Continuous use time: about 40 hours (without Z3210 installed), about 24 hours (with Z3210 installed and wireless communication)
    Other specified conditions: AC 100 A measurement, LCD backlight OFF, 23°C reference value
    Measurable conductor diameter φ55 mm, clamp size: 92 W × 18 D mm
    size 65 W × 250 H × 35 D mm
    weight 530 g
    appendix
    Test lead L9300 ×1, Carrying bag C0203 ×1, AA alkaline battery (LR03) ×2, Instruction manual ×2, Precautions on use ×1
